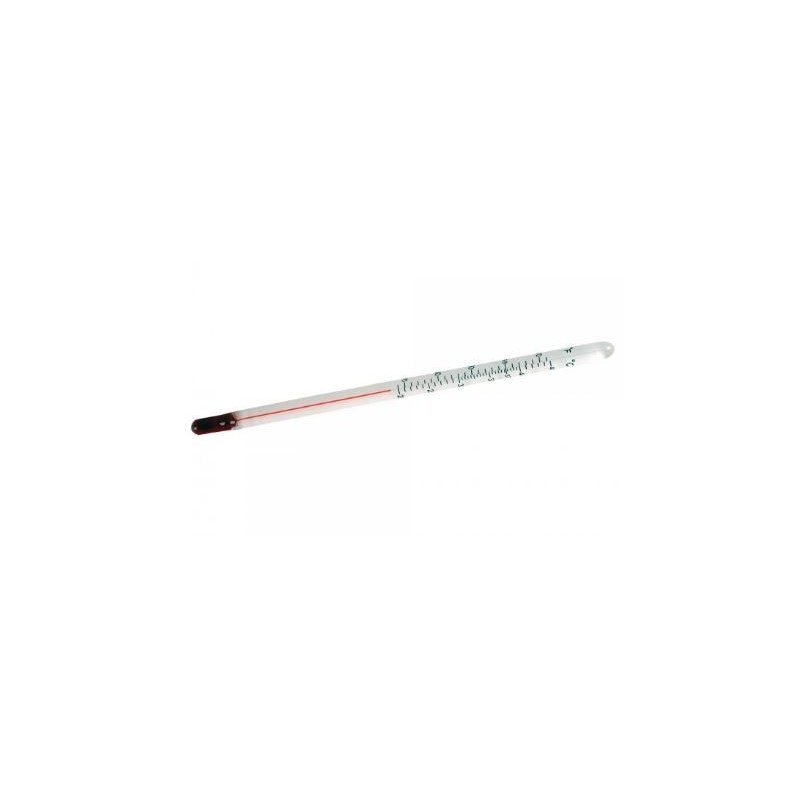

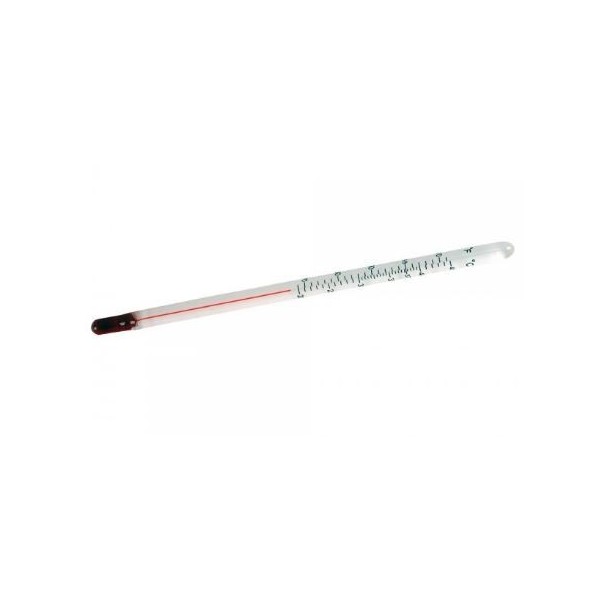

📋 Full Description - Thermometer 05/A
⚙️ Compatibility: Smart, CipCip 28, CipCip 40 (all versions)
📍 Code: 05/A | 💶 Price: €22.05 excluding VAT
🔍 When You Need This Replacement Part
Replace the thermometer if you notice: a fragmented column with breaks in the red liquid, a reading that doesn't reach 100°F when the incubator is running, a damaged glass bulb, or an illegible scale. Fragmented column is the most common problem after the mandatory switch from mercury to colored alcohol.
🛠️ First Try This
Fragmented column test: As indicated in the FIEM manual, place the thermometer in the freezer for a few minutes, then immediately immerse it in hot water. The thermal shock can recompact the alcohol. If the column remains fragmented after several attempts, replace it.
📊 Technical Specifications
| Measuring range | 80-105°F (conversion table in the manual) |
| Target temperature | 100°F (37.7°C) |
| Liquid | Colored alcohol (mercury substitute for EC regulations) |
| Conservation | Vertical at 10-30°C |
| Compatible support | Clip 17A |
⚡ Safe Installation
There's no need to unplug the incubator. Insert the thermometer from the bottom up into clip 17A, rotating slightly—never from the front to avoid breakage. Position the bulb midway between the eggs as specified in the manual. Always check the integrity of the column before use.
❌ Common Mistakes to Avoid
- Store horizontal instead of vertical
- Forced front insertion into the clip
- Cleaning with solvents that erase scale
- Do not check for fragmentation before use
🔗 Related Spare Parts
With this thermometer we recommend: 17A Clip holder (€0.53) to have a spare, DIG.SMART Digital thermostat (€57.00) for precise calibration.
📦 Logistics and Times
Ships within 1 business day from FIEM Como, delivery within 2-4 business days. There is no minimum order for this item.
❓ FAQ - Frequently Asked Questions
The column is broken in several places, how do I fix it?
Use the freezer-hot water method in the manual: freezer for minutes, then hot water. If it doesn't work after several attempts, it needs to be replaced.
Is it compatible with the old CipCip model?
Yes, the 05/A is universal for all Smart and CipCip models produced.
Can I use an external digital thermometer?
FIEM specifies this thermometer for the optimal reading position. Alternatives may give incorrect readings. For further control, in addition to the glass thermometer, you can add the Fiem Check Up precision digital thermometer for incubators, 32–42°C / 90–108°F.
Delivery times for urgent orders?
Departure in 1 working day, arrival 2-4 days.
