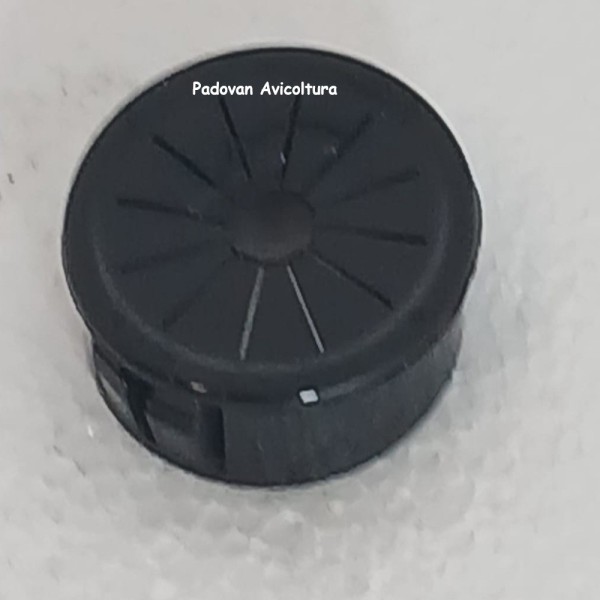

UB-1500 Plastic Bushing for FIEM Humidity System – Technical Data Sheet
📦 Compatibility
Compatible models:
- Incubators: CIP40, MG series (MG50, MG70, MG100, MG140, MG200, MG244, MG316, MG320)
- FIEM ultrasonic humidifiers
- Semi-automatic humidity systems with 10mm diameter tube
Spare part code: BOCC.148662
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this bushing
The bushing must be ordered when:
- Installation of new automatic system: First installation of the semi-automatic humidity kit
- Broken or damaged bushing: Cracked, deformed, or with broken lugs
- Bushing lost or missing: During cleaning or never present
- Pipe rubs on metal: The pipe passes directly into the hole without protection
- Conversion to automatic system: Fitting the kit for the first time
⚠️ Why is the bushing important?
The UB-1500 bushing has essential functions:
- Protects the pipe from abrasion: The metal hole edge would cut the pipe over time
- Ensures sealing: Prevents moisture leaks from the passage point
- Easy installation: The hose slides easily through the bushing
- Extends hose life: Without chafing, the hose lasts much longer
- Maintains hygiene: Partially closes the hole, preventing dust from entering
🔧 Technical features
| Characteristic | Value |
|---|
| Model | UB-1500 |
| Material | Food grade plastic (PE or PP) |
| Incubator hole diameter | ~10-12 mm (check on your model) |
| Internal passage diameter | ~10 mm (for TUB tube.) |
| Assembly | Push-fit or snap-fit |
| Operating temperature | 0°C - 50°C |
🔧 Installation
Assembly (very simple):
- Unplug the incubator
- Clean the hole from any residue or dirt
- Insert the UB-1500 bushing into the hole from the outside to the inside
- Check that the bushing is securely fastened and does not move
- Insert the tube (TUB.) through the bushing from the outside to the inside
- Pass the pipe until it reaches the internal tray/channel
- Connect the tube to the internal float
- Connect the other end of the hose to the external tank
⚠️ Before ordering: checks
Is your incubator set up?
- Check for hole presence: Check that there is a hole on the back/side for the pipe passage (diameter 10-12mm)
- Measure the hole: Using a caliper or ruler, measure the diameter of the hole
- Check if there is already a bushing: It could be present but worn or damaged
📸 Not sure? Send us photos of the hole and the back of the incubator on WhatsApp : we'll confirm compatibility.
🧼 Maintenance
Periodic checks (every 6 months):
- Check that the bushing is still well fixed in the hole
- Check that there are no cracks or breaks
- Make sure the hose slides freely without rubbing
- Inspect for any water leaks from the passage point
❌ Common mistakes to avoid
- Do not assemble the system without a bushing: the tube would quickly deteriorate.
- Do not force excessively: The bushing must enter with light pressure, not by hammering.
🛒 Commercial information
Price: €0.84 (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Order the complete semi-automatic kit to get to €20.
💡 Complete Semi-Automatic Humidity Kit – Order Everything Together
Complete kit (everything you need):
- 5L Canister (0083) – €8.82
- Red Float (97G) – €5.04
- 10mm × 1.5m tube (TUB.) – €2.84
- Bushing UB-1500 (BOCC.148662) – €0.84
- Kit total: €17.54
Useful add-ons:
- 350 TOP trays (CIP 28) – €1.30 × 2
- Channel (CIP 40) – €6.50
- Extra Tube (TUB.) – €1.89/meter (if longer is needed)
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Is the bushing compatible with all FIEM incubators?
A: It is compatible with models that have a 10-12mm hole.
Q: Can I do without the bushing?
A: Not recommended. The hose would rub against the metal edge of the hole and quickly deteriorate, causing leaks.
Q: Does the bushing also work for ultrasonic humidifiers?
A: Yes, it is the same component used for the pipe passage of FIEM ultrasonic humidifiers.
Q: If the bushing is broken, can I repair it?
A: No, it needs to be replaced. It's inexpensive (€0.84) and is essential for proper functioning.
Q: How do I know if my incubator already has the bushing?
A: Look in the hole on the back: if you see a plastic ring marking the passage, it's the bushing. If you see the metal directly, it's missing.
