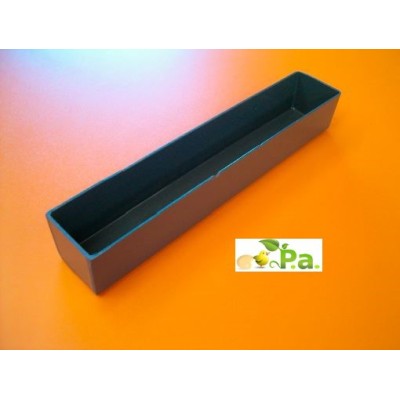

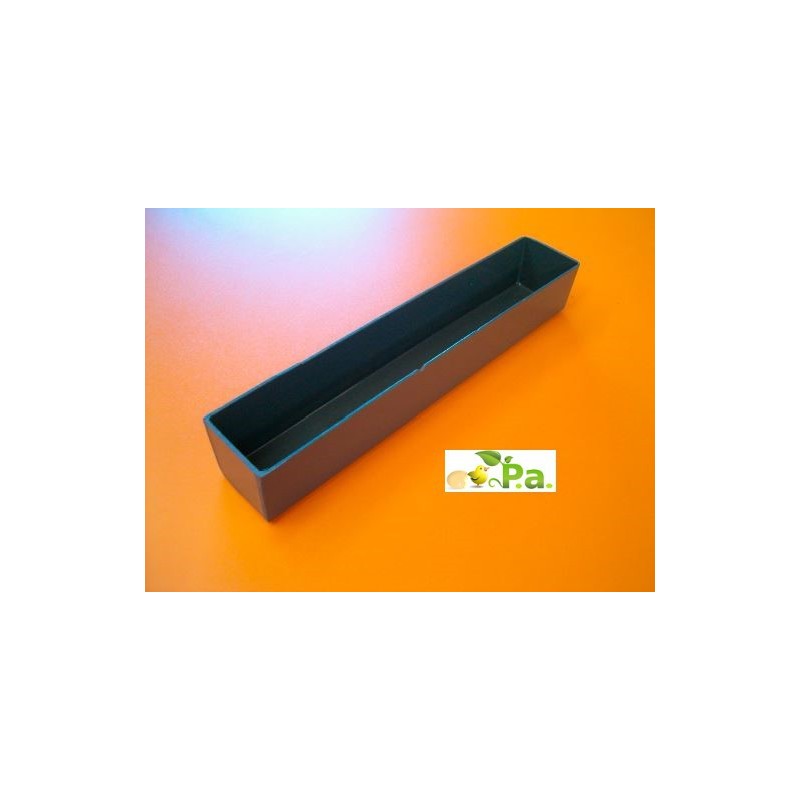

Humidity Channel for CIP 40 – Complete Technical Data Sheet
📦 Compatibility
Compatible model: CIP CIP 40 (40 eggs)
NOT compatible with: CIP CIP 28 (uses 350 TOP trays)
Spare part code: CANALETTA
Exploded Technical Reference: Component Number 8
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When it's necessary to replace the gutter
The gutter must be replaced when:
- Cracked or broken gutter: Water leaks from the bottom, compromising the humidity level
- Heat deformed: No longer fits properly into the seat
- Damaged compartments: The 2 sectors are no longer separated correctly
- Deteriorated plastic: After years of use it becomes fragile and porous

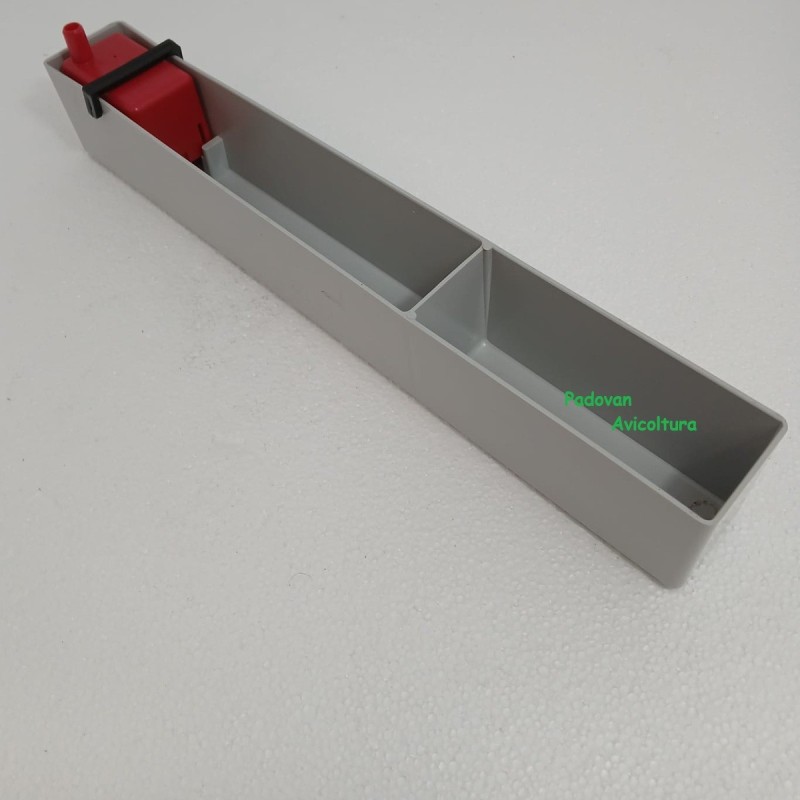

💧 How the 2-compartment system works
The CIP 40 CIP channel has 2 separate sectors to precisely regulate humidity:
During incubation (first 18-25 days depending on the species):
- Fill ONLY 1 compartment
- Target humidity: 38-52% (depending on species)
- Check your manual for specific values for your species.
During hatching (last 2-3 days):
- Fill BOTH compartments
- Target humidity: 62-70%
- Higher humidity helps chicks break their shells
💡 Advice from 45 years of experience: Humidity is critical for hatching. If it's too low, the chick dries out and struggles to emerge. If it's too high, it stagnates in the shell. Always adjust based on candling and the decrease in air volume.
⚠️ Before ordering: quick checks
Are you sure it needs to be replaced?
- Leak Check: Fill with water and check for leaks from the bottom (wait 10-15 minutes)
- Try cleaning it: Use hot water and vinegar (50/50) to dissolve the limescale. Let it soak for 1-2 hours.
- Check the 2 sectors: Fill one compartment: the water must not pass into the other
📸 Having doubts? Send us a photo of the gutter on WhatsApp and describe the problem.
🔧 Installation and use
Assembly (very simple):
- Unplug the incubator for safety.
- Remove the old gutter from the bottom
- Clean the housing seat
- Insert the new channel
- Fill with warm water according to directions (1 or 2 compartments)
What water to use?
- Tap water: It's fine if it's not too hard.
- Distilled/demineralized water: Ideal for avoiding limescale deposits
- Water temperature: Warm (20-25°C) to avoid lowering the temperature in the room too much
🧼 Cleaning and maintenance
After each incubation cycle:
- Empty the drain completely
- Wash with hot water and neutral detergent
- For limescale deposits: soak in water and vinegar (50/50) for 1-2 hours
- Rinse thoroughly
- Dry completely before storing.
- Optional: disinfect with alcohol or Glutarsan (FIEM tested product)
⚠️ Do not use:
- Wire brushes (scratch plastic)
- Harsh chemicals (corrode plastic)
- Pure bleach (may damage the material)
❌ Common mistakes to avoid
- Don't overfill: The water should reach 3-5mm from the edge, not to the brim.
- Don't forget to top up: Check the level every 2-3 days, evaporation is continuous
- Don't open too often: Every opening causes humidity and temperature to be lost.
- Don't use cold water: It lowers the temperature in the room too much
- Do not use hot water: it depends on the microclimate, use only lukewarm water 20/256°C.
🛒 Commercial information
Price: €6.50 (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Add other useful spare parts to complete your order.
💡 Related spare parts to order together
- CIP 40 channel metal support (SUPP.BAC.CIP40) (€5.50) – If the support is also damaged
- Red Float 97G (€5.04) – For automatic humidity system
- 5L Canister (0083) (€8.82) – For automatic humidification
- Thermometer °F (05/A) (€22.05) – Analogue temperature control
- 2A Fuse (€0.42) – Always have a spare
📊 Indicative humidity values table
| Species | Incubation | Hatching |
|---|
| Light breed hen | 47% | 62% |
| Heavy breed hen | 52% | 62% |
| Pheasant/Partridge/Quail | 38-43% | 56-62% |
| Turkey/Guinea Fowl | 47-52% | 62% |
| Duck/Goose | 38-43% | 62% |
Source: FIEM CIP CIP Manual 28-40
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Is the CIP 40 channel also suitable for CIP 28?
A: No, they are different. The CIP 28 uses 350 TOP trays. Always check your model.
Q: How many compartments do I need to fill?
A: During incubation → only 1. During hatching (last 2-3 days) → both.
Q: How often should I top up the water?
A: It depends on the ambient humidity, but on average every 2-3 days. Always check before opening for candling.
Q: Can I use tap water?
A: Yes, if it's not too hard. Distilled water is preferable to avoid scale buildup.
Q: How do I remove limescale build-up?
A: Soak in water and white vinegar (50/50) for 1-2 hours, then soft brush and rinse.
