⚙️ How angle guides work

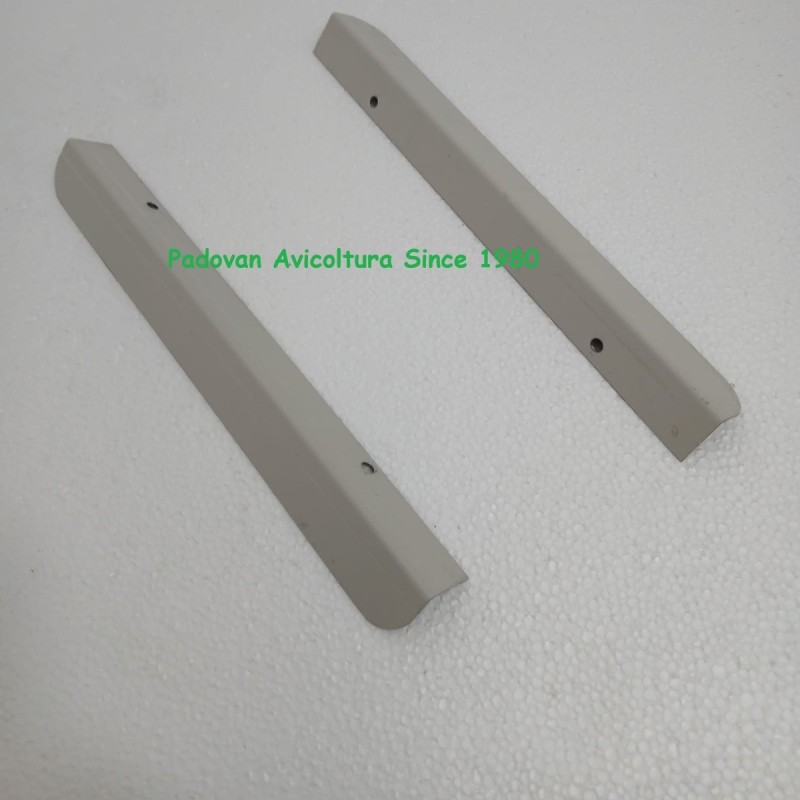

The lateral corner guides are the sliding tracks that guide the clear PVC door as it opens and closes. Their function is to ensure the door follows a precise path without lateral oscillation, evenly distribute the opening/closing forces, avoiding stress points on the PVC, and maintain perfect alignment between the door and frame to ensure a semi-hermetic seal. The guides are designed with an angled shape that hugs the edge of the door on two sides, providing stability and smoothness.
When a guide is damaged, the door becomes misaligned and begins to jam, forcing the door to move, which further accelerates deterioration.
🔍 When to replace this part
This component should be replaced if you notice one or more of these symptoms:
- ✓ Non-fluid movement: door that jams or requires force to open/close
- ✓ Broken or cracked guide: visibly damaged or broken plastic
- ✓ Excessive consumption: deep groove in the plastic where the door slides
- ✓ Misaligned door: it no longer closes flush or leaves drafts at the sides
- ✓ Noises during opening: abnormal squeaking, grinding, or grinding noises
⚠️ Why it happens and what you risk
Wear of the angle guides is mainly caused by repeated friction during opening/closing but above all by impacts.
If you continue to use damaged guides you will be forced to force the door, risking: breakage of the transparent PVC (cost €13-19.50), damage to the hinges or upper hooks, progressive loss of hermetic seal with dispersion of heat and humidity,
✅ Compatibility verified
This replacement part is available in two specific sizes. Please check your incubator's model nameplate before ordering.
🔧 Angle guides for CIP CIP 28
Model: CIP CIP 28 (capacity 28 eggs)
Code: GUIDE ANG.CIP28
Content: Pair (left guide + right guide)
Price: €7.00 + VAT
🔧 Angle guides for CIP CIP 40
Model: CIP CIP 40 (capacity 40 eggs)
Code: GUIDE ANG.CIP40
Content: Pair (left guide + right guide)
Price: €9.00 + VAT
⚠️ Important note: The guides are NOT interchangeable between CIP 28 and CIP 40 due to the different door sizes. Always check the exact model before ordering. We recommend always replacing the complete pair (L+R) to ensure smooth sliding.
🔧 Assembly in 4 simple steps
⏱ Estimated time: 10-15 minutes | 🔧 Tools needed: Phillips screwdriver, soft cloth
- Remove the PVC door
- Remove the old corner guides.
- Install the new guides
Place the new left guide (SX) in its lateral seat, aligning the screw holes. Screw it in partially without tightening completely. Repeat the operation with the right guide (DX). Make sure both are perfectly aligned before tightening the screws completely. - Reassemble the door and check the sliding
Insert the door into the new guides, sliding it from top to bottom. Open and close the door 4-5 times, checking for smooth, unimpeded movement. If necessary, slightly adjust the position of the guides by loosening and retightening the screws.
🛡️ How to make them last longer
With minimal maintenance you can significantly extend the life of your corner guides:
- ✓ Every 3 months: Clean the guides with a soft, dry cloth, removing any dust or debris that may have accumulated.
- ✓ Every 6 months: Check that the fixing screws are still well tightened and that the guides do not show signs of excessive wear.
- ✓ During use: Always open and close gently without forcing. If the door gets stuck, do not pull with force but check the cause.
- ✓ ⚠️ DO NOT do: Never force the door to open if it gets stuck, do not lubricate the guides with oils or greases that attract dust, do not clean with aggressive solvents
📌 Signs of wear: If you notice that you have to use more and more force to open the door, or that the door no longer slides as smoothly as it did at first, it means that the guides are wearing out and it's time to replace them before they break completely.
🔗 Spare parts frequently purchased together
🔗 Transparent PVC door (CIP28 / CIP40 PVC DOOR)
If you replace the tracks, also evaluate the condition of the PVC door. If it's cloudy or scratched, replacing it along with the tracks ensures optimal operation and perfect visibility.
Price: see product sheet
📞 Warranty and assistance
✅ 2-year FIEM warranty
Covers manufacturing defects and malfunctions not caused by misuse. If problems arise within 24 months of purchase, the part will be repaired or replaced free of charge.
🔄 Returns within 14 days
If for any reason you change your mind (returns cost money, so make an informed purchase), you can return the product intact and in its original packaging within 14 days of purchase.
📞 Technical support available
Free technical support via WhatsApp, email, or phone for questions about product assembly or operation.
🚀 Fast shipping from the FIEM Como warehouse
Ships within 24 hours - Tracked courier with delivery in 2-4 days throughout Italy.
🔒 100% secure payments
Your banking details are managed directly by the bank and encrypted: we never see or store them.
📱 ATTENTION
Please carefully check the model (CIP CIP 28 or CIP CIP 40) before ordering. The guides are NOT interchangeable. If you have any questions, please contact us via WhatsApp:
- ✓ A photo of the complete incubator
- ✓ A photo of the label on the back of the incubator
- ✓ A photo of the current guides (if still present)
This way we can confirm the correct size for you. Thank you!
