⚙️ How door hinges work

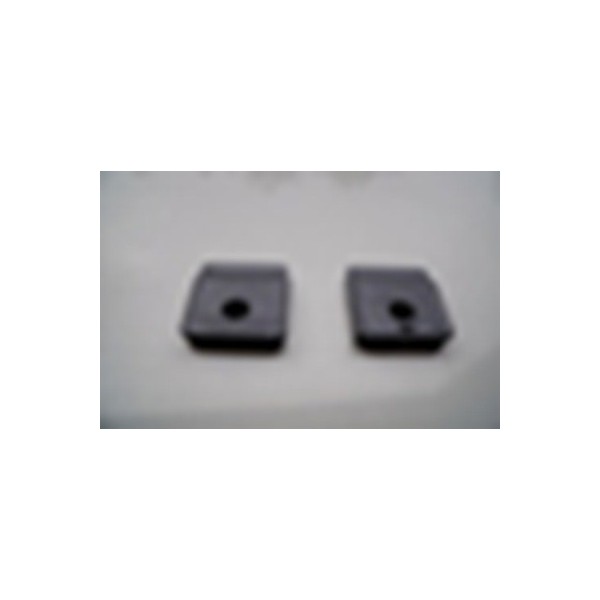

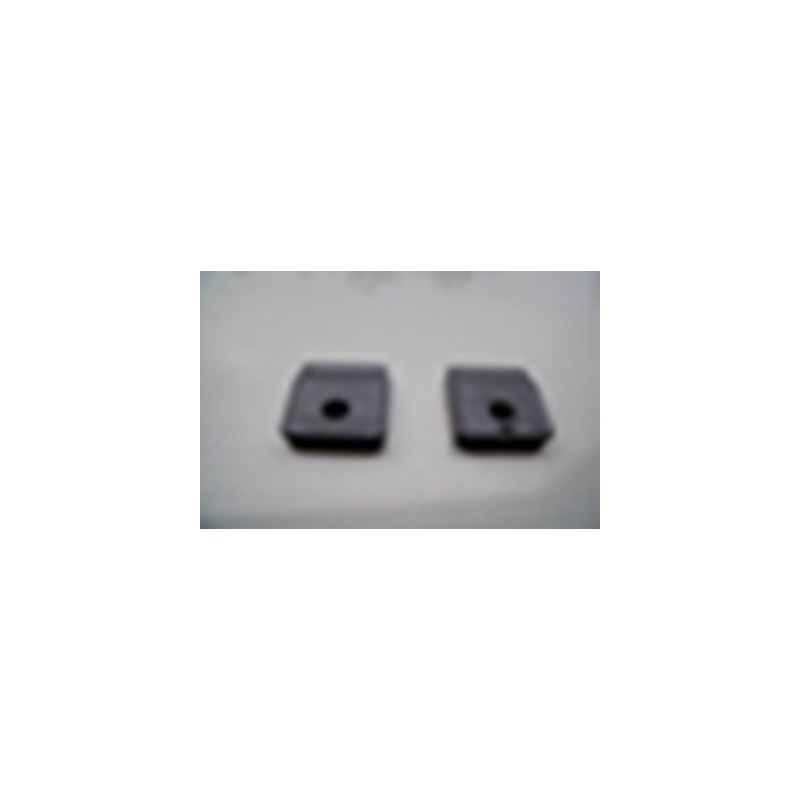

The hinges are the hinges that connect the transparent door to the body of the COSMO incubator. Each incubator has two. They allow the door to open and close smoothly, always maintaining a perfect seal when closed.
A tight seal is essential: if the door doesn't fit properly, the incubator loses heat and humidity. Even a small crack can cause temperature fluctuations and lower humidity by 10-15%, compromising embryo development.

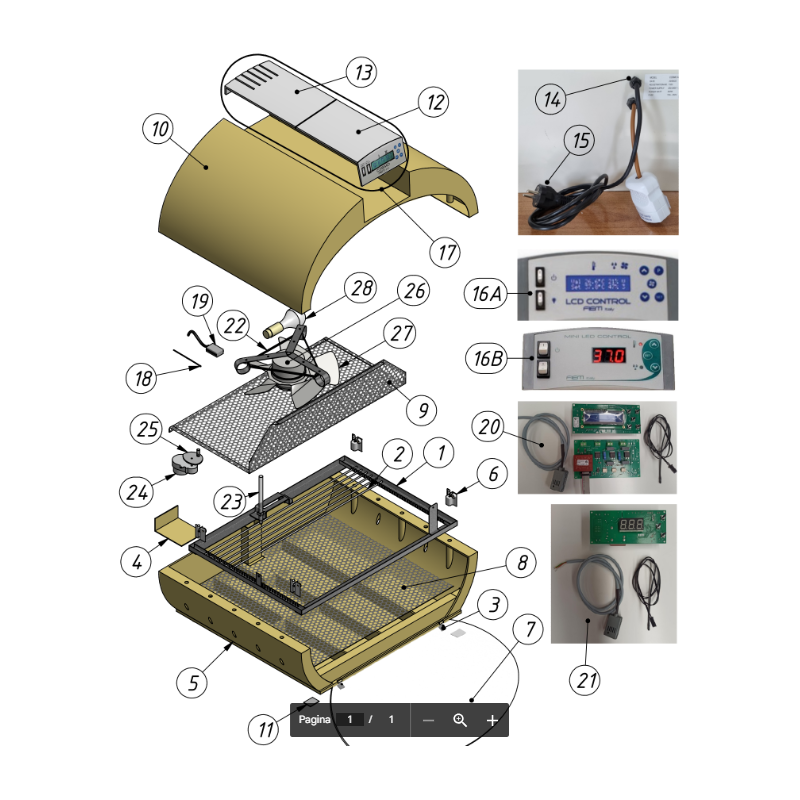

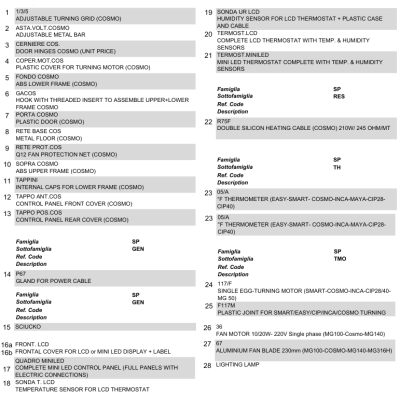

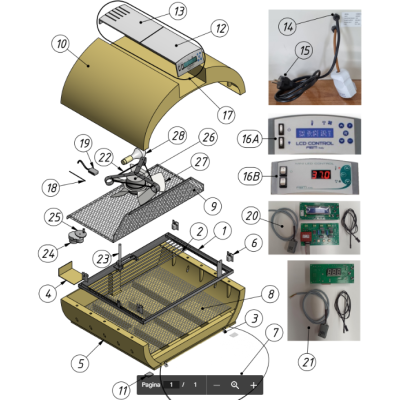

📋 Exploded view reference: This component corresponds to number 3 in the exploded view diagrams of FIEM COSMO incubators. Useful for identification during maintenance.
🔍 When to replace this part
Replace the hinges if you notice:
- ✓ Door does not close properly: a visible gap remains between the door and the machine body.
- ✓ Excessive play: The door "dances" or swings when closed.
- ✓ Broken or bent hinge: Visible damage to the metal hinge.
- ✓ Door that "falls" to one side: one of the two hinges has broken and the door is hanging.
- ✓ Difficulty opening/closing: non-smooth movement, jerking or abnormal resistance.
⚠️ Why it happens and what you risk
Hinges are mainly damaged by mechanical wear (repeated opening and closing over time), accidental impacts or forcing during cleaning.
A broken or loose hinge means a door that doesn't close properly. The result: heat loss, unstable humidity, and fluctuating temperatures. People often think it's a problem with the heating element or thermostat, but simply checking whether the door closes properly reveals that the problem is much simpler (and less expensive) to fix.
✅ Compatibility verified
These hinges are specific for FIEM incubators of the COSMO series:
📦 COSMO Analog
All versions with analog thermostat
📦 COSMO EVO / EVO Plus
Versions with color LCD control unit
📦 COSMO ML (MiniLed Advanced)
Version with 3-digit digital display
⚠️ Important note: These hinges are specific to COSMO. They are NOT compatible with SMART, INCA, CIP CIP, or MG which have different hinges.
🔧 Assembly in 4 simple steps
⏱ Estimated time: 5 minutes | 🔧 Tools: Phillips screwdriver
- Turn off and unplug the incubator
Remove the plug from the electrical outlet.
- Remove the damaged zipper
Unscrew the screws securing the hinge to the body and door. Hold the door with one hand to prevent it from falling.
- Install the new hinge
Place the new hinge in the same holes and screw it in securely. Don't overtighten to avoid stripping.
- Final test
Open and close the door several times. It should move smoothly and close without any visible gaps.
🛡️ How to make them last longer
- ✓ Every 6 months: check that the screws are tightened properly and that there is no play.
- ✓ After each cycle: Wipe the zippers with a dry cloth to remove dust and debris.
- ✓ During use: open and close the door gently, without forcing.
- ⚠️ DON'T: Never force the door if it encounters resistance, do not use water directly on the hinges.
🔗 Spare parts frequently purchased together
🔗 Transparent COSMO Door
If your door is scratched, dull, or cracked, it might be time to replace it and the hinges.
FIEM Code: COSMO DOOR
📞 Warranty and assistance
✅ 2-year FIEM warranty
Covers manufacturing defects. If there are any problems within 24 months, you'll get a free replacement.
🔄 Returns within 14 days
If for any reason you change your mind (returns cost money, so make an informed purchase), you can return the intact product within 14 days.
📞 Technical support available
Free support via WhatsApp, email, or phone.
🚀 Fast shipping from the FIEM Como warehouse
Ships within 24 hours - Tracked courier with delivery in 2-4 days throughout Italy.
🔒 100% secure payments
Your banking details are managed directly by the bank and encrypted: we never see or store them.
📱 ATTENTION
Please check the model and part number before ordering. If in doubt, send us photos of the old part and the incubator tag on WhatsApp.
