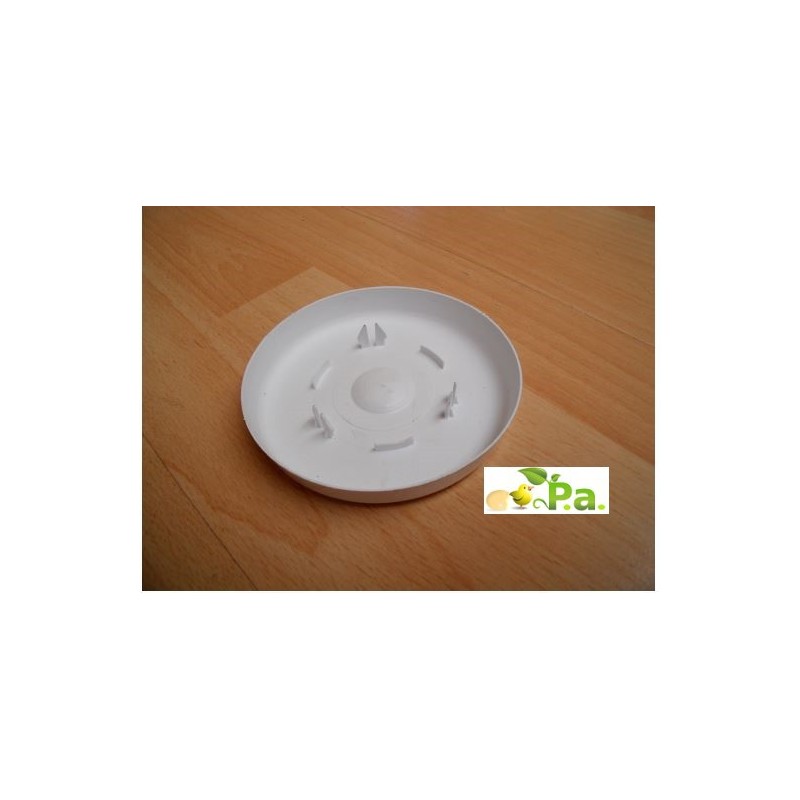

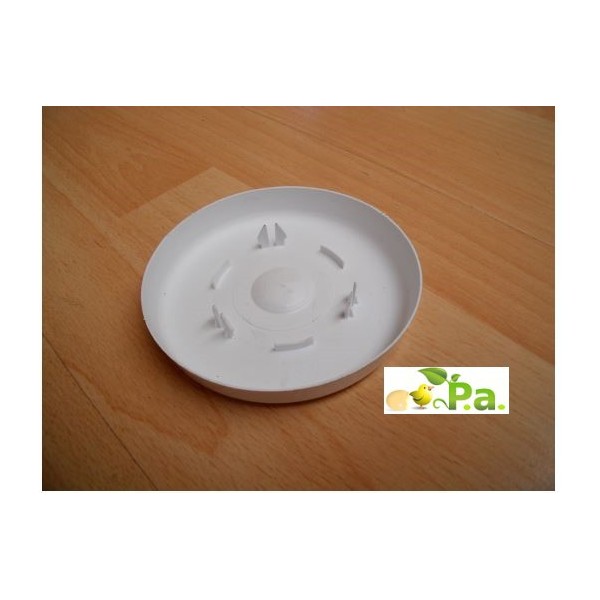

350 TOP Humidity Tray for CIP CIP 28 – Complete Technical Data Sheet
📦 Compatibility
Compatible model: CIP CIP 28 (28 eggs)
NOT compatible with: CIP CIP 40 (uses 2-compartment channel)
Spare part code: 350 TOP
Manufacturer: FIEM Srl (Como, Italy)
Quantity needed: The CIP CIP 28 uses 2 trays
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When do you need these trays?
The trays should be replaced when:
- Cracked or broken trays: They leak water from the bottom, compromising humidity.
- Deformed by heat: They no longer fit properly into the seat
- Limescale deposits that are impossible to remove: Encrustations that reduce the capacity
- Deteriorated plastic: After years they become porous and fragile
- Non-original trays: Incorrect dimensions that do not guarantee the correct humidity
💧 How the 2-tray system works
The CIP CIP 28 has 2 separate trays to regulate humidity:
During incubation (first 18-25 days depending on the species):
- Fill ONLY 1 tray (usually 1 is enough but it depends on the species, the quantity of eggs and the environment)
- Target humidity: 38-52% (depending on species)
- Leave the second tray empty
During hatching (last 2-3 days):
- Fill BOTH trays
- Target humidity: 62-70%
- Higher humidity helps chicks break their shells
💡 Advice from 45 years of experience: Always check the pressure drop in the inner tube by candling it to determine if the humidity is correct. If the pressure drop is too high, increase the humidity. If it's too low, decrease the humidity.
What water to use?
- Tap water: It's fine if it's not too hard.
- Distilled/demineralized water: Ideal for avoiding limescale deposits
- Water temperature: Warm (20-25°C) to avoid lowering the temperature in the room too much
🧼 Cleaning and maintenance
After each incubation cycle:
- Empty the trays completely
- Wash with hot water and neutral detergent
- For limescale deposits: soak in water and vinegar (50/50) for 2-3 hours
- Soft brush to remove encrustations
- Rinse thoroughly
- Dry completely before storing.
- Optional: Disinfect with alcohol or Glutarsan
⚠️ Do not use:
- Wire brushes (scratch)
- Harsh chemicals
- Pure bleach
❌ Common mistakes to avoid
- Don't overfill: The water should reach 5-7mm from the edge
- Don't forget to top up: Check the level every 2-3 days
- Do not use non-original trays: Wrong size = wrong humidity
- Don't open too often: Every opening causes humidity and temperature to be lost.
🛒 Commercial information
Price: €1.30 each (VAT excluded, shipping excluded)
Recommended quantity: Minimum 2 trays (the ones needed for the CIP CIP 28)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Order at least 2 trays + other useful spare parts to complete your order.
💡 Related spare parts to order together
- Metal support for CIP 28 trays (SUPP.BAC.CIP28) (€4.50) – If the support is also damaged
- Red Float 97G (€5.04) – For automatic humidity system
- 5L Tank (0083) (€8.82) – Automatic humidification tank
- Thermometer °F (05/A) (€22.05) – Analogue temperature control
- R75E resistor (€12.18) – The heating cable
📊 Indicative humidity values table
| Species | Incubation | Hatching |
|---|
| Light breed hen | 47% | 62% |
| Heavy breed hen | 52% | 62% |
| Pheasant/Partridge/Quail | 38-43% | 56-62% |
| Turkey/Guinea Fowl | 47-52% | 62% |
| Duck/Goose | 38-43% | 62% |
Source: FIEM CIP CIP Manual 28-40
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: How many trays do I need for the CIP CIP 28?
A: The CIP CIP 28 uses two trays. During incubation you normally fill one, and during hatching you fill both.
Q: Is the 350 TOP tray also suitable for CIP CIP 40?
A: No, the CIP CIP 40 uses a 2-compartment channel. Always check your model.
Q: How often should I top up the water?
A: It depends on the environmental humidity, on average every 2-3 days.
Q: Can I use tap water?
A: Yes, as long as it's not too hard. Distilled water is preferable to avoid scale buildup. Never hot or cold, 20-25°C is fine.
Q: How do I remove limescale build-up?
A: Soak in water and white vinegar (50/50) for 2-3 hours, then soft brush and rinse thoroughly.
