Red Water Float for Fiem CIP 40-MG50-MG70-MG100-MG140-MG200-MG320 Semi-Automatic Humidity System
📦 Compatibility
Compatible models: Fiem CIP CIP 40-MG50-MG70-MG100-MG140-MG200-MG320-MG244-MG316
Spare part code: 97G
Exploded Technical Reference: Component Number 7
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When is this float needed?
The float must be replaced when:
- Float stuck: No longer moves freely or always remains in the high/low position
- Water leaks: The system does not shut off the flow properly and the water continues to fill
- Unstable water level: The float no longer regulates the level correctly
- Damaged float: Cracks, breaks, or missing parts
- Conversion to automatic system: Do you want to install the automatic humidity kit on your Fiem?

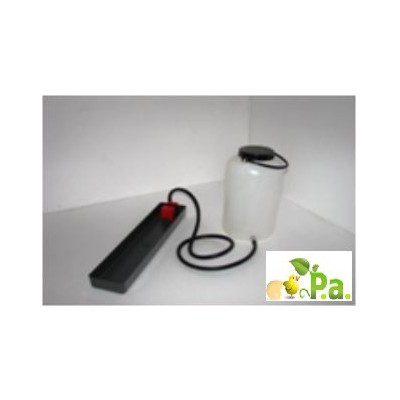

💧 How the automatic system works

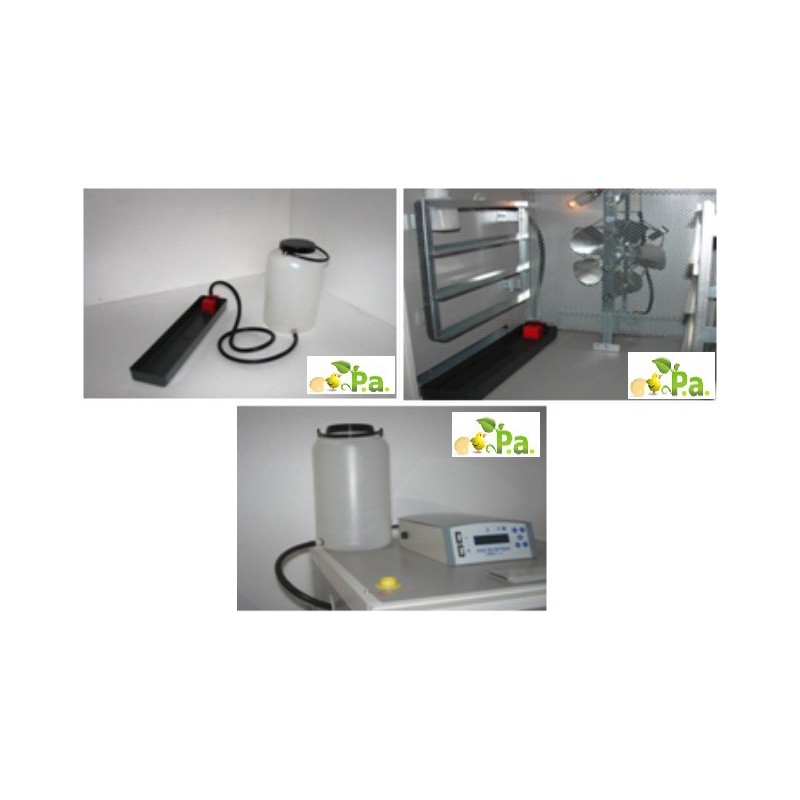

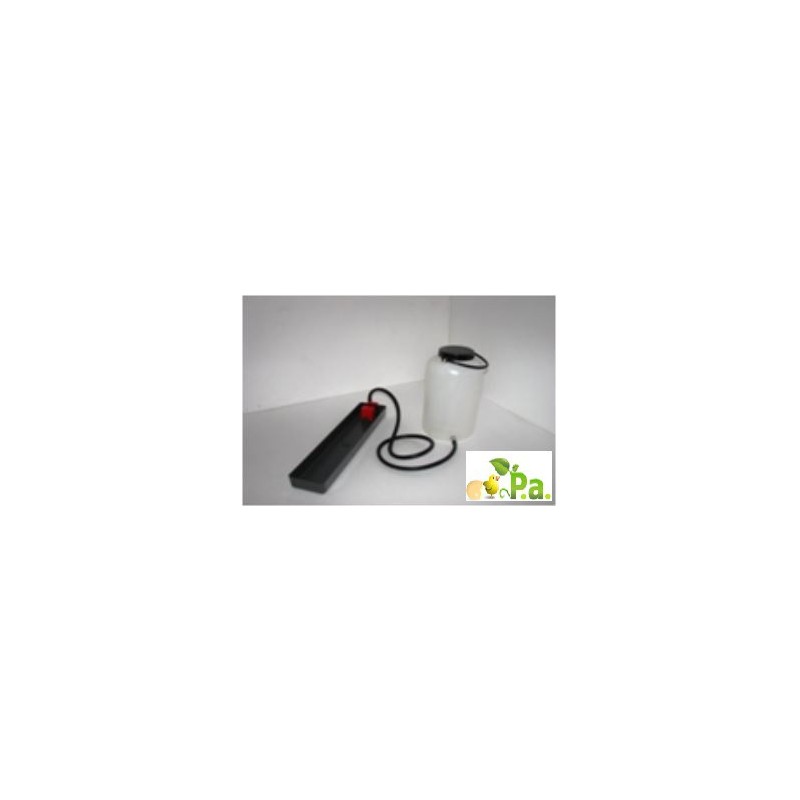

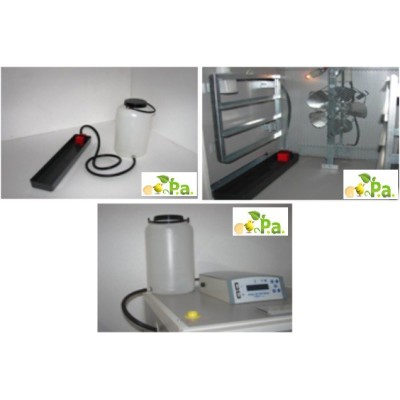

The float is part of the automatic humidity kit which includes:

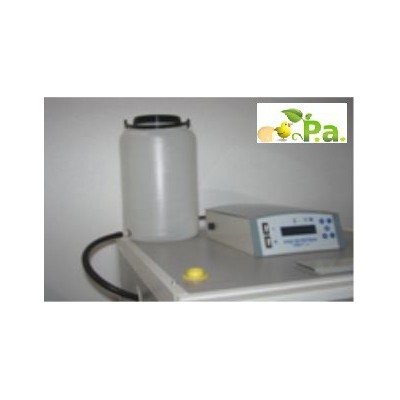

- 5-litre external tank (water reserve)
- Connecting pipe

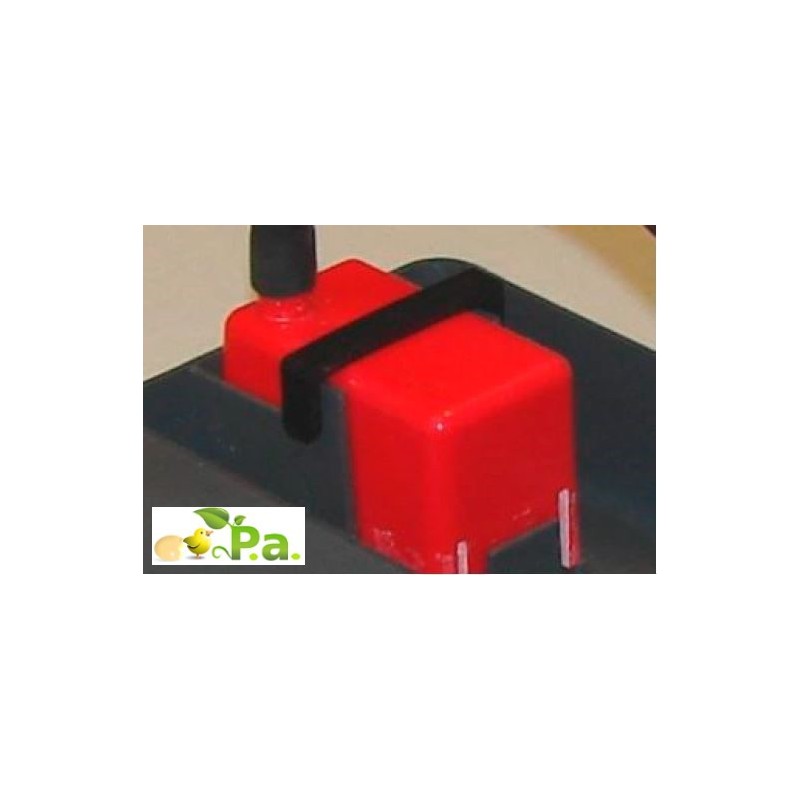

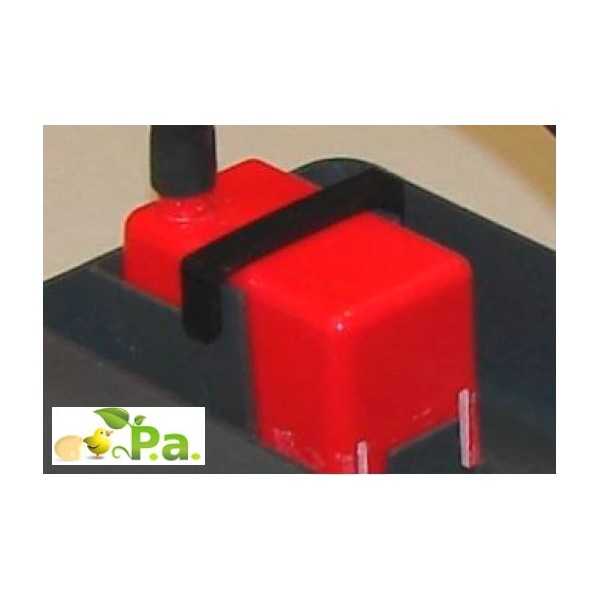

- Red float (this spare part)
- Communicating vessel system

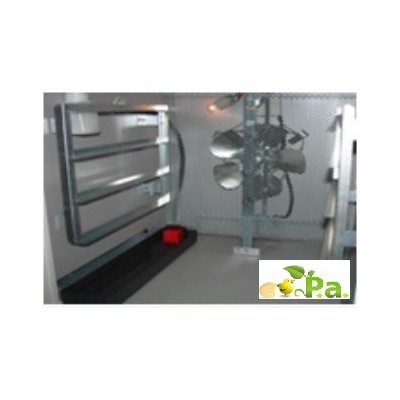

How it works: When the water in the trays evaporates, the float lowers and allows automatic flow from the external tank. When the correct level is reached, the float rises and closes the passage.
Advantage: You no longer have to open the incubator to refill the water → more stable temperature → better hatching results.
🔧 Installation and maintenance
Float replacement (if you already have the automatic system):
- Unplug the incubator
- Remove the old float from the tank
- Clean the housing from any limescale deposits
- Insert the new float, making sure it moves freely.
- Reopen the tap and check that it is working correctly.
💡 Advice from 45 years of experience: Use distilled or demineralized water in the automatic system: this will prevent limescale deposits on the float and prolong its life.
🧼 Periodic maintenance
To ensure correct operation:
- Periodically check that the float moves freely
- Clean any limescale deposits with water and vinegar (diluted) by immersion
- Check for water leaks
- Check the level in the external tank before each incubation
❌ Common mistakes to avoid
- Don't use tap water that is too hard: Choose distilled or demineralized water instead.
- Do not force the float: It must move freely, if it is blocked replace it
- Don't forget to fill the tank: Always check before starting incubation
🛒 Commercial information
Price: €5.04 (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Complete with other automation system components for a complete order.
💡 Related Spare Parts – Complete Humidity System
- 5L Canister (0083) (€8.82) – External tank for water reserve
- 10mm diameter water pipe (€1.89/meter) – To connect the tank and the incubator
- CIP 28 humidity tray (350 TOP) (€1.30) – If worn
- CIP 40 Humidity Channel (€6.50) – For 40-egg model
- Plastic bushing UB-1500 (BOCC.148662) (€0.84) – For pipe inlet
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Is the float suitable for both CIP 28 and CIP 40?
A: No, I'm 40
Q: Can I install the automatic system on my incubator?
A: Yes, if your CIP CIP is prepared (has holes for the hose). Contact us to check compatibility.
Q: What kind of water should I use?
A: Preferably distilled or demineralized water to avoid limescale deposits.
