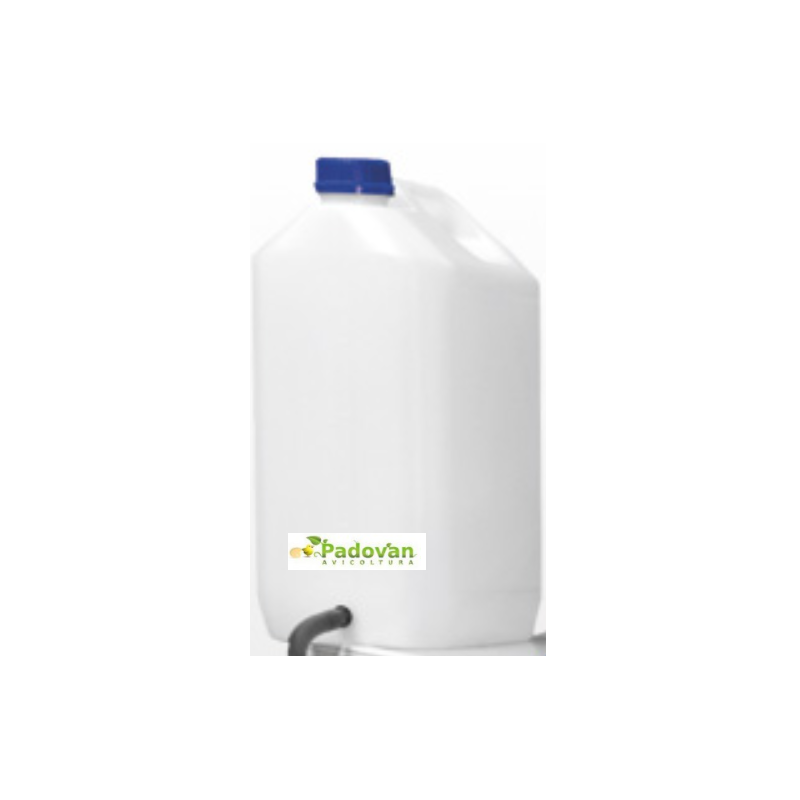

5-Liter Tank for FIEM Semi-Automatic Humidity Kit – Complete Technical Data Sheet
📦 Compatibility
Compatible models: CIP CIP 28 and CIP CIP 40 (with semi-automatic humidity kit)
Spare part code: 0083
Capacity: 5 litres
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this canister
The 5-litre canister is useful when:
- Conversion to semi-automatic: Do you want to install the automatic humidity kit on your incubator?
- Damaged canister: The old canister is cracked, leaking, or no longer holding its seal.
- Lost or missing tank: You purchased a used incubator without a tank.
💧 How the semi-automatic system works

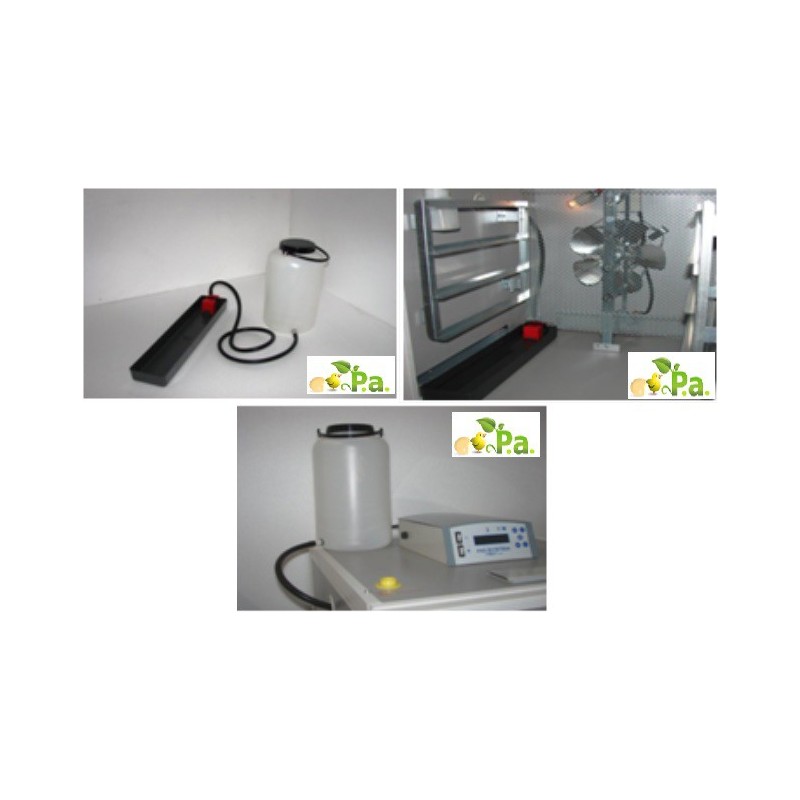

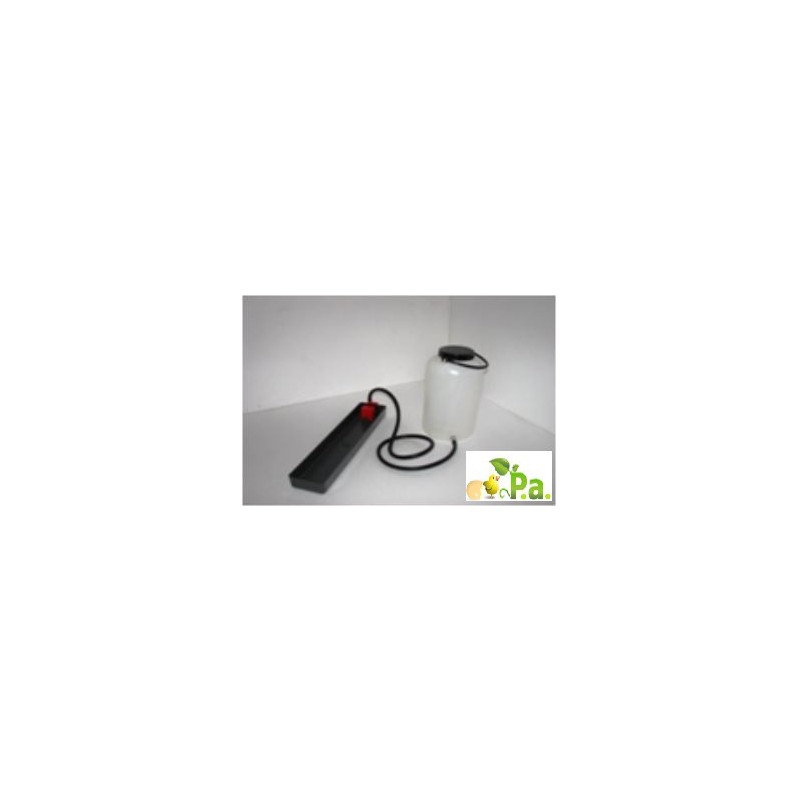

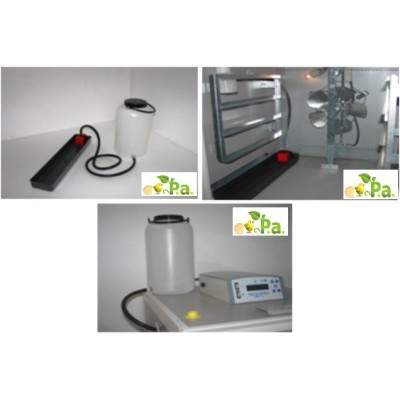

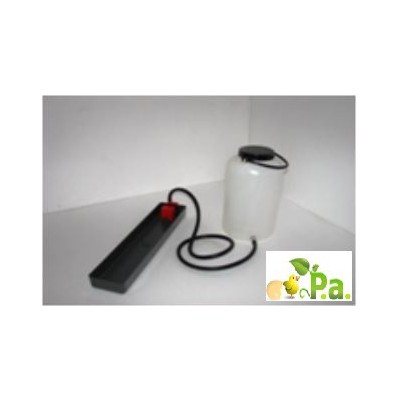

The FIEM semi-automatic humidity kit includes:
- 5L Canister (0083) – External Tank (this component)

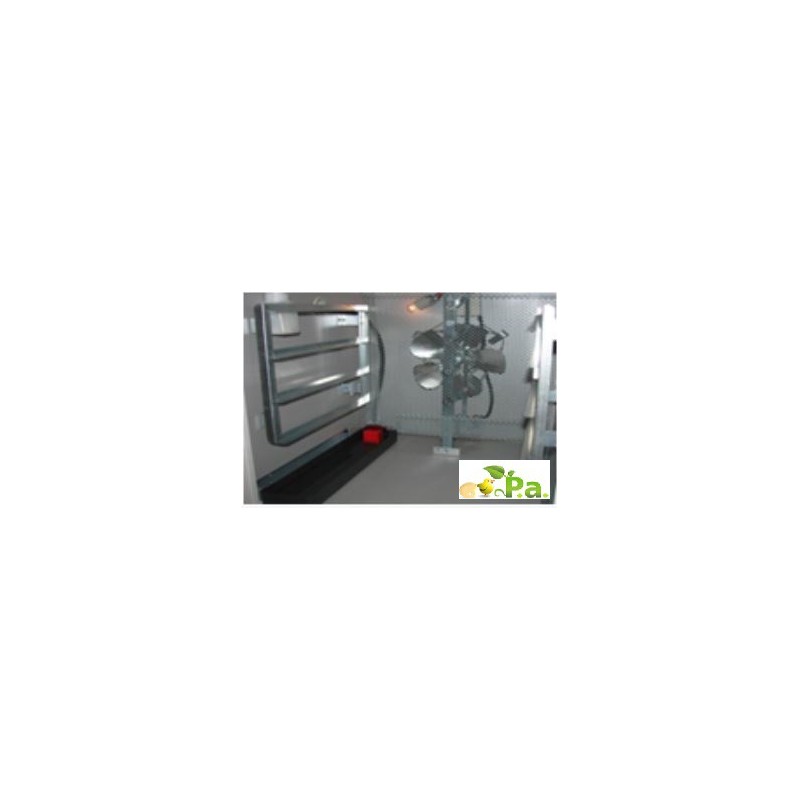

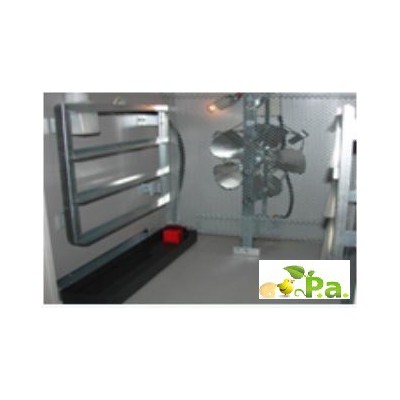

- Channel + Red Float (97G) – Automatic water level regulator in the channel
- 10mm diameter tube – Tank-incubator connection
- Plastic bushing (BOCC.148662) – Tube passage in incubator hole

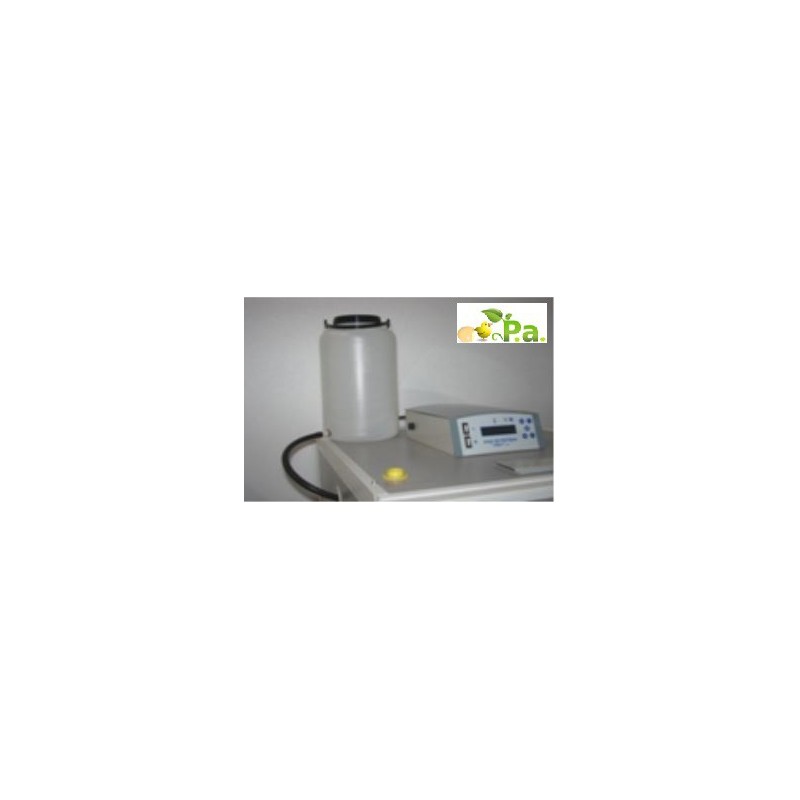

Communicating vessel operation:
- The tank is placed above or at the same level as the incubator
- The tube connects the tank to the internal trays/channels
- When the water evaporates, the float drops and opens the passage
- Water flows from the tank by gravity to the correct level
- The float rises and closes the passage
Advantages of the semi-automatic system:
- ✅ You no longer have to open the incubator to refill → more stable temperature
- ✅ Autonomy of many days (depending on evaporation)
- ✅ Constant humidity 24/7 → better hatching results
- ✅ Ideal if you work away from home or cannot check daily
- ✅ Reliable mechanical system → no electronics to fail

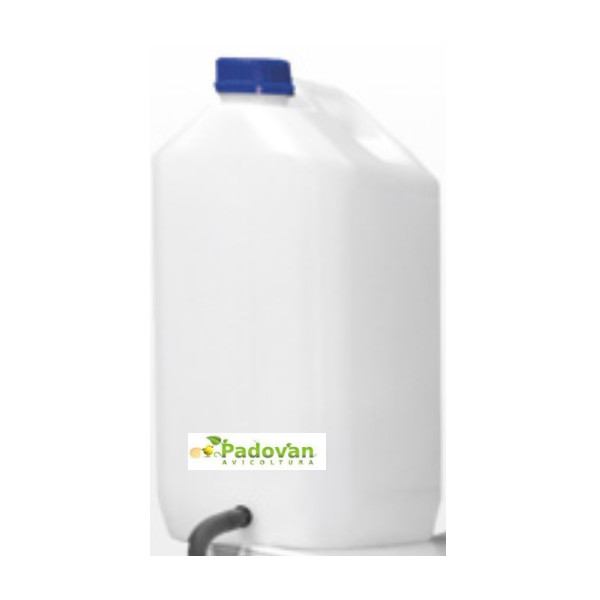

🔧 Technical characteristics of the tank
| Characteristic |
Value |
| Nominal capacity |
5 liters |
| Material |
Food grade plastic (PE or PP) |
| Cork |
Screw-on, with hole for tube |
| Connection |
Tube diameter 10mm external |
| Average autonomy |
7-10 days (depends on evaporation) |
⚠️ Before ordering: checks
Is your incubator set up?
To install the semi-automatic kit, your CIP CIP must have:
- ✅ Hose passage hole (usually on the back, diameter 10-12mm)
- ✅ Floating system compatible with tanks/channels
📸 Not sure? Send us photos of the back of the incubator and trays on WhatsApp : we'll confirm compatibility and advise you of any additional components needed.
🔧 Complete kit installation
Required components (if not already present):
- 5L Canister (0083) – €8.82
- Red Float (97G) – €5.04
- 10mm diameter tube – €1.89/meter (you'll need about 1-1.5 meters)
- Plastic bushing (BOCC.148662) – €0.84
Installation procedure:
- Make sure the incubator has a hose hole on the back
- Insert the plastic bushing into the hole
- Connect the hose: one end goes into the bushing up to the tray/channel
- Fit the float into the internal tank/channel
- Fill the tank with water (preferably distilled or demineralized)
- Connect the other end of the hose to the tank
- Place the tank above or at the same level as the incubator
- Open the cap of the tank to allow air to flow (otherwise a vacuum will be created)
- Check that the water flows properly and stops at the float level
💡 Advice from 45 years of experience: Use distilled water to avoid limescale deposits in the float.
🧼 Tank maintenance
Periodic cleaning (every 2-3 incubation cycles):
- Empty the tank completely
- Wash inside with hot water and neutral detergent
- Long-handled brush to reach the bottom
- Rinse thoroughly
- For disinfection: solution of water and bleach (10:1), then rinse very well
- Dry completely before refilling
❌ Common mistakes to avoid
- Do not place the tank too low: It must be above the incubator
- Don't close the cap tightly: Air needs to come in to let the water out
- Don't use water that is too hard: prefer distilled/demineralized water
- Don't forget to check the level: Check at least once a week
- Don't use hoses that are too long or have too many bends: They limit the flow of water.
🛒 Commercial information
Price: €8.82 (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Order the complete semi-automatic kit to easily get to €20.
💡 Complete Semi-Automatic Humidity Kit – Order Everything Together
Option A – Basic kit (if you already have the float):
- 5L Canister (0083) – €8.82
- 10mm × 1.5m tube – €2.84
- Plastic bushing (BOCC.148662) – €0.84
- Total: €12.50
Option B – Complete kit:
- 5L Canister (0083) – €8.82
- Red Float (97G) – €5.04
- 10mm × 1.5m tube – €2.84
- Plastic bushing (BOCC.148662) – €0.84
- Total: €17.54
Other useful spare parts to add:
- 350 TOP trays (CIP 28) – €1.30 × 2
- Canaletta – €6.50
- Thermometer °F (05/A) – €22.05
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
- Packaging: Tank protected with bubble wrap to avoid damage during transport
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: How often should I refill the tank?
A: It depends on evaporation, but on average every 7-10 days. Visually check the level weekly.
Q: What kind of water should I use?
A: Preferably distilled or demineralized water to avoid limescale deposits in the float and tube.
Q: Should the cap be open or closed?
A: It must be closed but with the hole for the hose open (air intake is needed to allow the water to flow out).
Q: Can I use a different tank?
A: You can, but make sure it has a cap compatible with a 10mm tube and that it is made of food-grade plastic.
