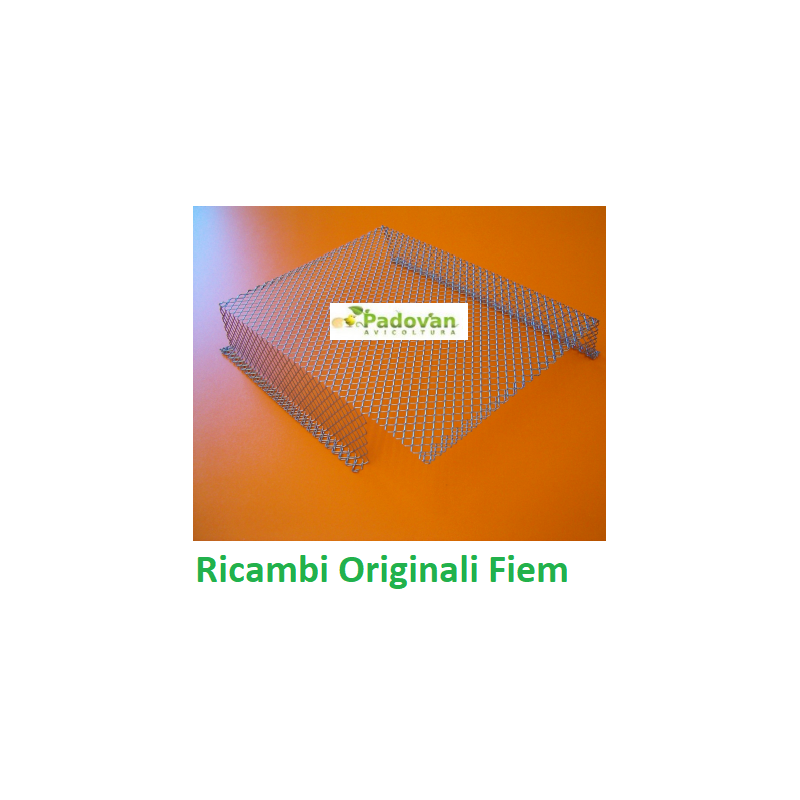

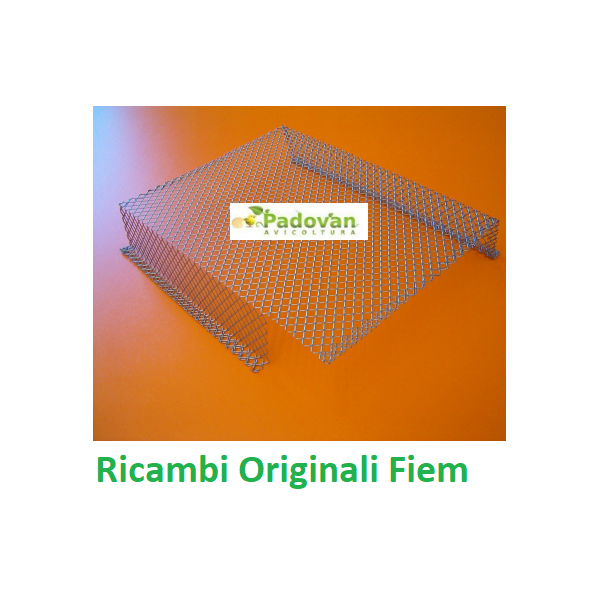

CIP Fan Protection Net CIP 28 / CIP CIP 40 – Complete Technical Data Sheet
📦 Compatibility – PAY ATTENTION TO THE MODEL
⚠️ IMPORTANT: There are TWO versions of the net, NOT interchangeable:
- CIPCIP NETWORK – For CIP incubator CIP 28
- CIPCIP NETWORK – For CIP CIP 40 incubator
When ordering, ALWAYS SPECIFY your model (28 or 40).
📸 Not sure which model you need? Check the identification plate on the back of the incubator or send us a photo on WhatsApp – we'll confirm right away which net you need.

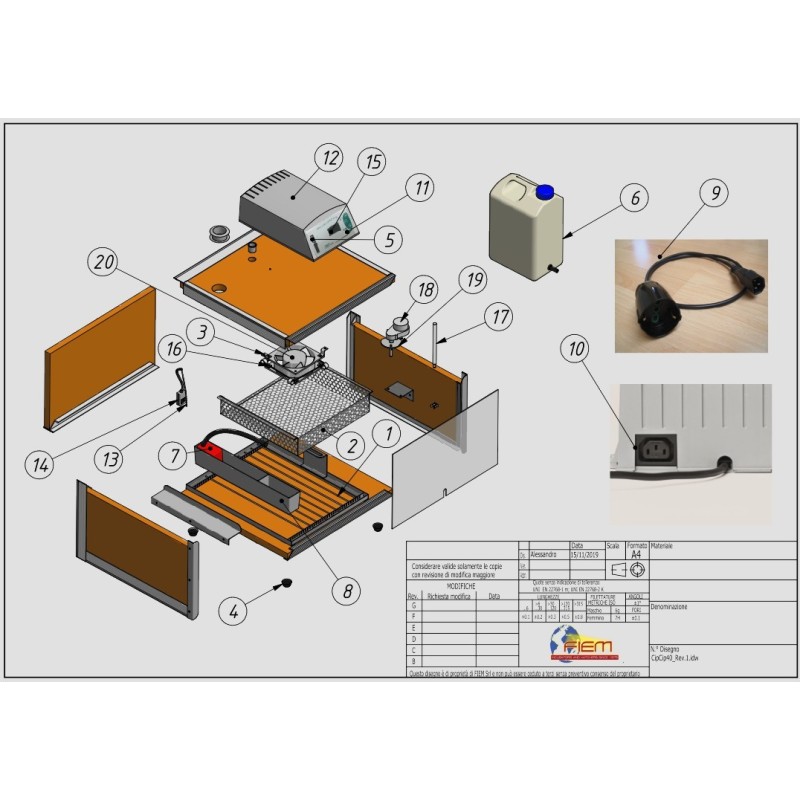

Exploded view reference: Component number 2 (CIP CIP 40)
Manufacturer: FIEM Srl (Como, Italy)
🔍 When to Replace the Net – Typical Symptoms
The safety net should be replaced when one or more of the following symptoms occur:
- Rubbing noises: You hear a metallic or scratching noise coming from the fan, a sign that the deformed mesh is touching the blades
- Reduced ventilation: Air circulates less effectively, with possible temperature inhomogeneities in the incubator
- Accumulated debris: Feathers, shell fragments or dust accumulate in the fan area because the mesh no longer provides adequate protection.
- Oxidized or corroded mesh: After years of use or cleaning with aggressive products, the mesh appears rusty
- Deformed or widened mesh: Accidental impacts or deterioration have compromised the original shape
- After cleaning too vigorously: You have used metal brushes or overly aggressive chemicals that have damaged the mesh
⚠️ Before ordering: quick checks to do
Do you really need to replace your mesh? Before purchasing, check these things:
- Always unplug the appliance from the power outlet (safety first)
- Visually check the condition of the mesh: is it deformed? Rusted? Are the meshes widened?
- Check that the mesh does not touch the fan blades (if it does → it must be replaced)
- Check that there is no debris simply accumulated: a thorough cleaning may solve the problem without having to change the mesh
- Try to gently straighten any small deformations with your fingers (if the mesh is still intact)
📸 Not sure? Send us a photo of the installed mesh and the incubator model (label on the back) on WhatsApp : we'll help you determine if replacement is necessary and which mesh to order.
🔧 Safe installation
ATTENTION SAFETY
Before any intervention:
- Always unplug the appliance from the power outlet
- Never intervene with the incubator switched on or connected to the mains.
- No part must be under tension during work
- If you don't feel confident → the procedure is simple but if you have any doubts ask for help
Assembly procedure (valid for both 28/40 models):
- Unplug the power cord from the electrical outlet
- Access the fan compartment at the top of the incubator
- Unscrew the screws holding the old safety net (usually 2-4 screws)
- Gently remove the old mesh
- Position the new net, checking that the screw holes are correctly aligned.
- Screw the new mesh in without overtightening (to avoid deforming it)
- Make sure the mesh does not touch the fan blades at any point.
- Reconnect the plug and turn on the incubator to check that it is working correctly.
💡 Advice from 45 years of experience: When replacing the mesh, take the opportunity to thoroughly clean the fan and the inside of the upper compartment. Remove dust, feathers, and accumulated debris—this will improve ventilation efficiency.
❌ Common mistakes to avoid
- Don't order the wrong net: CIP CIP 28 and CIP CIP 40 have different net sizes – always check your model
- Do not overtighten the screws: You risk deforming the new mesh, ruining the replacement.
- Do not force the net into the fixing points: If it does not fit easily, you probably ordered the wrong model
- Don't forget to clean: Putting a new mesh on a dirty fan won't solve ventilation problems.
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and collection time – Each component must be located in the FIEM warehouse among thousands of references, visually checked for integrity and carefully extracted
- Professional shockproof packaging – The wire mesh requires shaped cardboard to avoid deformation during transport
- Administrative management – Invoice issuance, tax registration, inventory control, management system updates
- Tracked courier organization – Pickup booking, tracking label generation, customer notification, and delivery problem management
💡 Tip: Consider adding other useful spare parts to complete your order and reach €20.
💡 Related spare parts to order together
If you are replacing your safety net, consider also ordering:
- Fan Motor 37/A (€38.64) – The complete fan, if it shows signs of wear or noise
- Metal Fan Brackets (€1.05) – Small but essential for keeping your fan aligned
- °F Thermometer (€22.05) – For always precise analog temperature control
- 2A Fuse (€0.42) – Always have this on hand for emergencies.
- CIP 28 humidity trays (€1.30 each) – If they are worn or damaged
- CIP 40 Humidity Channel (€6.50) – For the 40-egg model
🧼 Network maintenance and cleaning
How to clean your net properly (without damaging it):
- Use warm water and neutral detergent (NO acidic or corrosive products)
- Soft brush or non-abrasive sponge to remove dirt
- Rinse thoroughly and dry completely before reassembling
- For deep disinfection: alcohol or Glutarsan (disinfectant tested by FIEM)
- Avoid metal brushes that would damage the mesh
💡 Recommended cleaning frequency: After each complete incubation cycle, or at least every 2-3 cycles if you incubate frequently.
📦 Logistics and delivery times
- Shipping: 1 business day from order confirmation
- Delivery: 2-4 working days (tracked courier)
- Goods Departure: FIEM Warehouse in Como
- Tracking: You will receive the tracking number via email/WhatsApp
- Packaging: Shaped cardboard to protect the net from deformation during transport
✅ Warranty and technical assistance
- Legal guarantee: 24 months for purchases from private individuals, 12 months for purchases with VAT numbers
- Original FIEM spare parts: Quality guaranteed by the manufacturer, perfectly compatible dimensions
- Technical support: Available via WhatsApp 3518819586 for questions about installation or compatibility checks.
- FIEM since 1975: Over 50 years of experience in the artificial incubation sector
❓ Frequently Asked Questions (FAQ)
Q: How do I know if I have a CIP CIP 28 or a CIP CIP 40?
A: Look at the nameplate on the back of the incubator, or count the capacity: 28 or 40 chicken eggs indicates a model number of 28 or 40, respectively. Not sure? Send us a photo on WhatsApp .
Q: Can I mount the 28 mesh on the 40 or vice versa?
A: No, the sizes are different and are not interchangeable. Always order the specific net for your model.
Q: The net is slightly bent, do I need to replace it?
A: It depends on the extent of the warping. If it's not touching the fan blades and the mesh is still intact, you can try gently straightening it. If it's touching the fan blades, it needs to be replaced.
Q: How long does a safety net last?
A: With proper use and regular cleaning with non-aggressive products, it can last for many years (even 5-10 years or more). Lifespan depends on frequency of use and maintenance.
Q: Can I use generic wire mesh instead of the original one?
A: Not recommended. The original FIEM mesh has dimensions, mesh pitch, and thickness specifically designed to ensure proper ventilation and protection. A generic mesh may not be compatible or compromise efficiency.
📞 Need help?
🛒 Order now or ask for information
📞 WhatsApp 392 452 5099
📧 Email: info@padovanavicoltura.it
⚠️ REMEMBER TO SPECIFY: CIP CIP 28 or CIP CIP 40
Our team is available to support you in choosing and installing.
📋 Legal Notice and Rights
Original content from Padovan Avicoltura – Reproduction prohibited without written permission (except for indexing by search engines for SEO purposes). Technical information is extracted from official FIEM documentation. Prices and availability are current as of 2025 and are subject to change without notice.
