IEC Female Panel Socket for FIEM Limpia Humidifier – Technical Data Sheet
📦 Compatibility
Applications:
- FIEM automatic ultrasonic humidifier
Spare part code: IEC PANEL

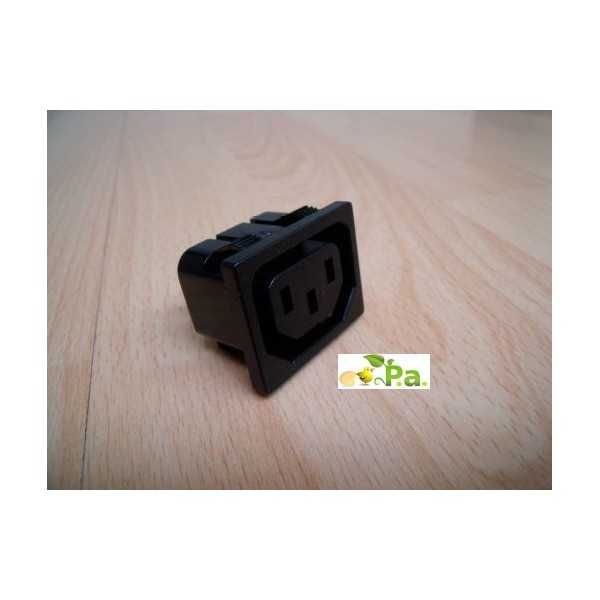

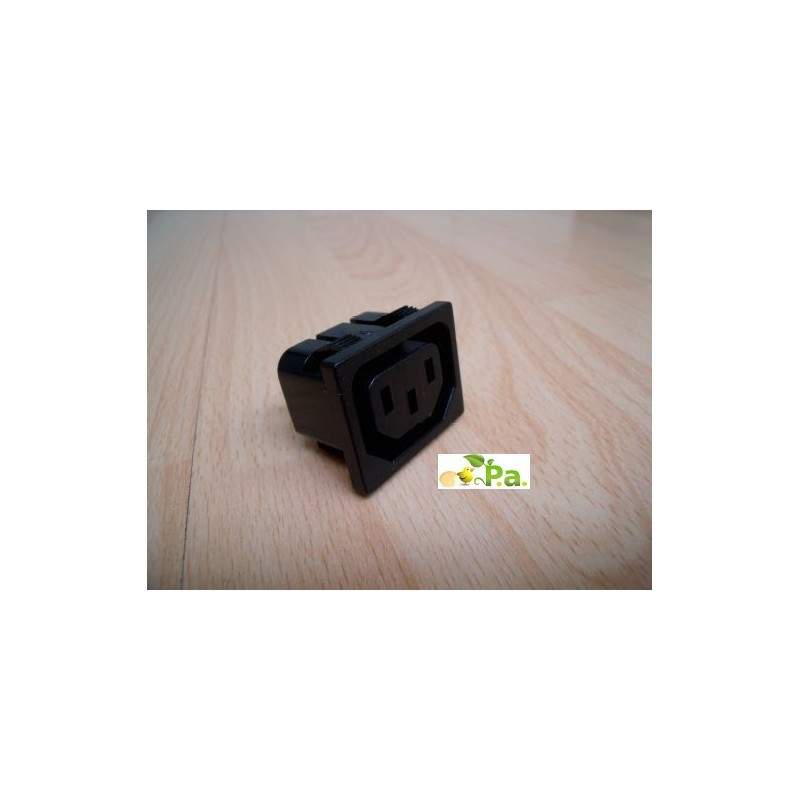

Connector Type: IEC C14 Female Panel Mount Socket (International Standard)
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator and humidifier
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this socket
The IEC socket should be replaced when:
- Humidifier off: Does not turn on despite the cable being connected
- False contact: It turns on and off intermittently, you have to move the plug
- Plug doesn't fit properly: Socket is deformed, too loose or too narrow
- Sparks: You see flashes when you insert/remove the plug
- Burning smell: Overheated plastic in socket area
- Visibly damaged: Melted, blackened, or cracked plastic
- Oxidized Contacts: Green, Black, or Corroded Metal Pins
- Loose grip: Moves in the panel instead of staying put
⚠️ What is the IEC socket?
The IEC (International Electrotechnical Commission) socket is a worldwide standard :

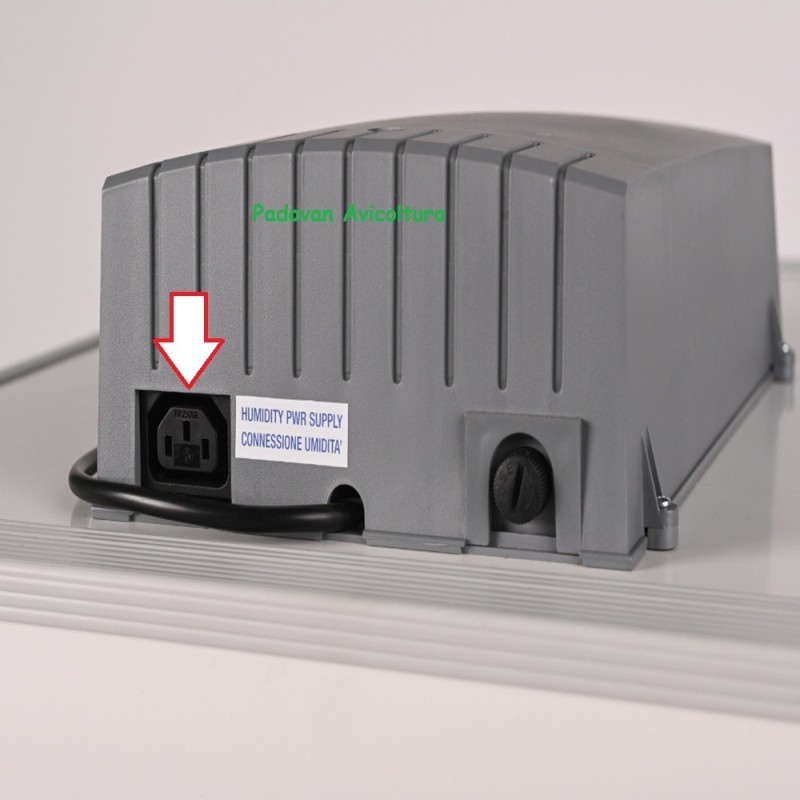

- Type C14 (female to panel): This replacement, mounted on the humidifier
- Type C13 (male on cable): The power cord plug
- Universality: Same connector as PC, monitor, printer
- Voltage: 250V AC
- Current: 10A
⚠️ Before ordering: diagnostics
Is the socket really the problem?
Rapid test:
- Unplug everything (main plug + IEC plug)
- Cable Test: Try the IEC cable on another device (PC, monitor) – does it work?
- Visual inspection: Look inside the socket with a flashlight – are the contacts shiny or oxidized/black?
- Test with another cable: If you have a spare IEC cable, try it on the humidifier.
📸 In doubt? Send us a photo of the socket (with the inside visible) on WhatsApp and describe the symptoms.
🔧 Technical specifications
| Characteristic | Value |
|---|
| Type | IEC 60320 C14 Female Panel Socket |
| Rated voltage | 250V AC |
| Rated current | 10A |
| Poly | 3 (phase, neutral, earth) |
| Assembly | Panel mounted with screws or clips |
| Body material | Fireproof plastic |
| Contact material | Nickel-plated brass |
🔧 Installation – FOR QUALIFIED TECHNICIANS ONLY
DANGER – HIGH VOLTAGE 230V
Requirements:
- ✅ Certified electrical skills
- ✅ Knowledge of electrical diagrams and IEC standards
- ✅ Professional tools (testers, insulated screwdrivers)
If you are NOT an electrician → rely on a technician.
Procedure (for technicians only):
- Disconnect ALL power supplies
- PHOTOGRAPH all connections before disconnecting cables
- Note: phase (L), neutral (N), earth (⏚)
- Unplug the cables from the old outlet
- Remove the socket from the panel
- Install the new IEC socket
- Reconnect the cables as shown in the photo
- Check with tester (no short circuits)
- Test the operation
❌ Dangerous mistakes to avoid
- ❌ Reverse phase and neutral – Dangerous
- ❌ Do not connect the ground – Risk of electrocution
- ❌ Loose cables – Fire risk
- ❌ Working with electricity – Risk of electrocution
🛒 Commercial information
Price: 1.47 (VAT excluded, shipping excluded)
Includes: IEC socket only (DOES NOT include cable)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Complete with other humidity system components.
💡 Related spare parts
- 5L canister (0083) (€8.82) – Automatic system tank
- 10mm Pipe (TUB.) (€1.89/m) – Water connection
- Bushing UB-1500 (BOCC.148662) (€0.84) – Pipe passage
- Red Float (97G) (€5.04) – Level Regulator
- 2A Fuse (€0.42) – Electrical Protection
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Can I use a generic IEC socket?
A: Yes, if it has the same specifications (C14, 250V, 10A). The original FIEM guarantees perfect dimensions.
Q: Does it include cable?
A: No, just the plug. Use your existing cable or purchase a standard IEC cable (€5-15).
Q: Can I replace it?
A: Only if you're an electrician. You're working with lethal 230V. Otherwise, hire a technician.
Q: If it sparks, should I replace it immediately?
A: Yes, immediately. Sparks = fire risk.
Q: How long does an IEC socket last?
A: 10-15 years or 5000+ cycles with proper use.
