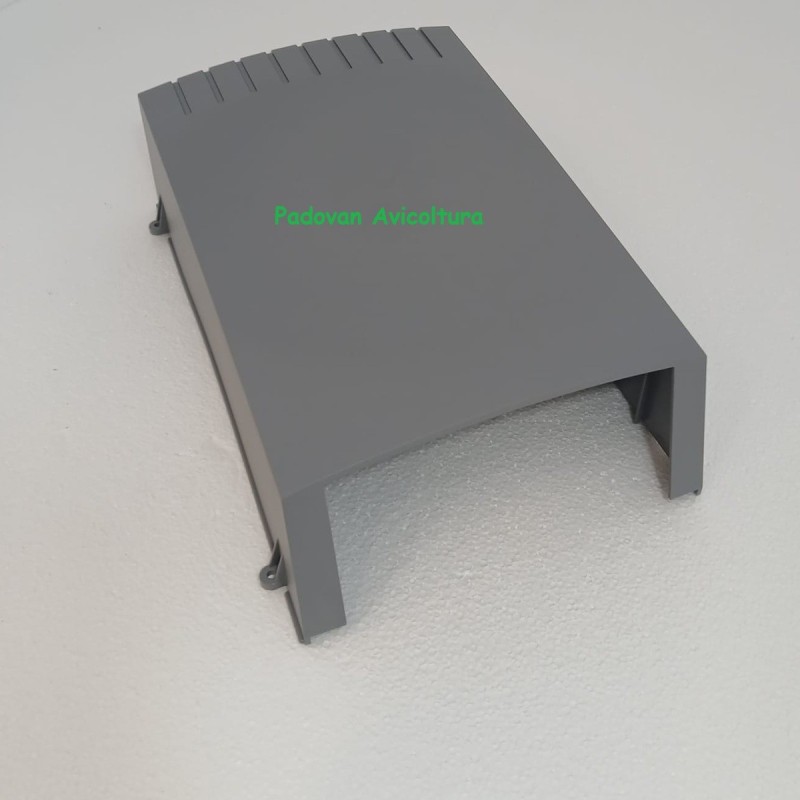

ABS Cover for Fiem Control Panel

⚙️ How does the ABS control panel cover work?

The ABS cover is the physical barrier that isolates the electronic control unit from the outside environment. Its function is twofold: on the one hand, it protects the circuit boards, connectors, and electronic components from dust, moisture, and foreign bodies that could cause short circuits or malfunctions. On the other, it absorbs accidental impacts that could irreparably damage the circuit board during daily operation of the incubator.

ABS (Acrylonitrile Butadiene Styrene) is specifically chosen for its properties: superior impact resistance to common plastics, dimensional stability even with temperature variations, excellent electrical insulation, and resistance to corrosion from chemicals present in the poultry environment. The four-head Phillips screw fastening ensures a secure fit but also facilitates periodic maintenance of the control unit without having to disassemble the entire control panel. With prolonged use, however, repeated mechanical stress (opening/closing for checks, vibrations during transport, thermal expansion) can compromise the threaded seats or cause microfractures in the material.

🔍 When to replace this part

This component should be replaced if you notice one or more of these symptoms:

• ✓ Enlarged or frayed screw holes: the screws no longer hold the tightening and the cover moves or comes off easily
• ✓ Visible cracks or fractures: break lines on the surface or at the corners, even if the closure still holds
• ✓ Yellowed or cloudy plastic: prolonged exposure to UV rays or heat which has degraded the material
• ✓ Obvious deformation: lid that is warped, swollen or no longer closes flush with the rest of the frame
• ✓ Obvious infiltrations: signs of dust or condensation inside the electronic panel

⚠️ Why it happens and what you risk

Damage to the ABS lid is primarily caused by three factors: mechanical stress from repeated opening/closing, which progressively widens the screw holes (especially if tightened with excessive force); direct exposure to UV rays or heat sources, which make the plastic brittle and prone to breakage; and accidental impacts during cleaning or handling of the incubator. In professional breeding facilities with daily access to the control unit for inspection, deterioration can appear after 4–5 years; in hobby use with occasional openings, the lid can last 10 years or more.

If you continue to use a damaged cover, you risk fine dust infiltration, which can settle on the circuit boards and create conductive bridges between the contacts (causing sudden short circuits). Environmental humidity can also oxidize the connectors and compromise the soldering (causing intermittent malfunctions that are difficult to diagnose). If the cover breaks completely during an incubation cycle, the control unit could be exposed to direct impacts that can cause irreparable damage. The cost of replacing the entire control unit ranges from €176 (MiniLED Advanced) or more, compared to €17.50 for a preventive cover.

✅ Compatibility verified

This spare part is compatible with all FIEM models listed below. If you're unsure about your specific model, check the code on the internal plate or send us a photo on WhatsApp.

🔧 Assembly in 3 simple steps

⏱ Estimated time: 3-5 minutes | 🔧 Tools needed: medium Phillips screwdriver

1. Turn off and unplug the incubator from the power supply
   Wait at least 2 minutes for the internal capacitors to fully discharge. Place the incubator on a stable, well-lit surface for comfortable work.
2. Remove the damaged cover
   Locate the four Phillips screws securing the cover to the control panel (usually located at the four corners). Unscrew them diagonally (first the upper left corner, then the lower right, then the upper right, and finally the lower left) to avoid stress on the plastic. Gently lift the cover, taking care not to hit the electronic components underneath. Check the condition of the screws: if they are rusted or damaged, replace them with Phillips screws.
3. Install the new cover and check
   Place the new ABS cover, aligning the four holes with the threaded seats on the control panel. Insert all four screws by hand, but do not tighten them completely. Once you've verified perfect alignment, tighten the screws diagonally with moderate force (do not overtighten to avoid damaging the new seats). Check that the cover fits snugly and is free of play or movement. Reconnect the power and turn on the incubator to ensure everything is working properly.

🛡️ How to make it last longer

With minimal maintenance you can significantly extend the life of your ABS cover:

• ✓ Every month: Clean the surface with a soft, slightly damp cloth (never use solvents or aggressive detergents that degrade the ABS) and check that the screws are still well tightened.
• ✓ Every year: Visually check for microfractures or deformations, and verify that the screw holes are not enlarged (the screw should enter with slight resistance)
• ✓ During use: Open the lid only when strictly necessary, avoid tightening the screws with excessive force (the plastic material is easily damaged), handle with care during cleaning or moving
• ✓ ⚠️ DO NOT do: Never expose the incubator to direct sunlight, which yellows and weakens the plastic. Do not use acetone, denatured alcohol, or abrasive cleaners. Do not force the lid shut if it does not align perfectly (check the cause).
