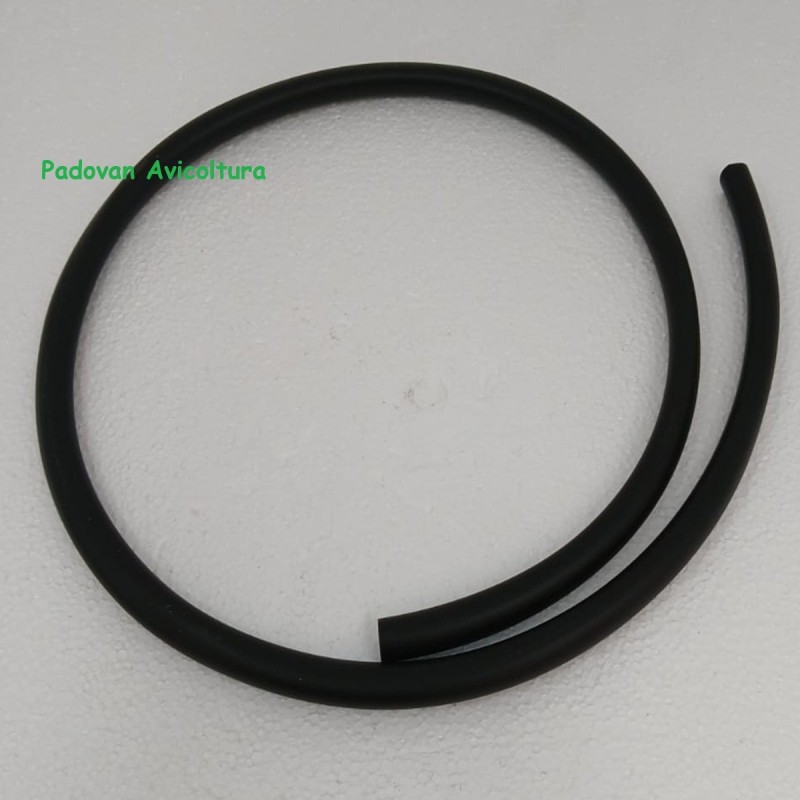

Automatic Humidity System Connection Pipe – Complete Technical Data Sheet
📦 Compatibility
Compatible models:
- Incubators: CIP CIP 28, CIP CIP 40, MG50, MG70, MG100, MG140, MG200, MG244, MG316, MG320
- FIEM Breeders (with automatic watering system)
Spare part code: TUB.
Producer: FIEM Srl (Como, Italy)
Sold to: Linear meter
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any doubts or don't find the part you want, please send us an email. WhatsApp:
- ✅ A photo of the required spare part
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this tube
The tube must be ordered when:
- Semi-automatic kit installation: First installation of the automatic humidity system
- Old pipe hardened: After years of use, plastic becomes stiff and loses elasticity.
- Cracked or leaking pipe: Water leaks along the route
- Tube too short: You want to place the tank further away from the incubator
- Inadequate non-original tube: You used a generic tube that doesn't work well
- Preventive replacement: After 3-5 years it is good practice to replace it even if it is still intact
🔧 Technical specifications
| Characteristic |
Value |
| External diameter |
10 mm |
| Internal diameter |
~7-8 mm |
| Material |
Food grade PVC (non-toxic) |
| Flexibility |
Semi-rigid (maintains shape without collapsing) |
| Operating temperature |
5°C - 40°C |
| Resistence |
UV, water, limescale |
| Color |
Transparent/semi-transparent (for visual flow control) |
⚠️ Why use the original FIEM tube?
The FIEM pipe is specifically designed for:
- Precise diameter: 10mm external diameter perfect for FIEM bushing and float
- Food material: Non-toxic, safe for water intended for humidification
- Correct stiffness: Does not collapse under suction, maintains constant flow
- Heat resistance: It does not deform near the hot incubator
- Durability: Maintains elasticity and hold for years
📏 How much tube to order?
Guide to the length needed:
| Configuration |
Recommended length |
| Canister next to the incubator |
1 - 1.5 meters |
| Tank on top shelf |
1.5 - 2 meters |
| Tank in adjacent room |
2 - 3 meters |
| Special installations |
3+ meters (max 5 meters) |
💡 Advice from 45 years of experience: Always order 20-30cm more than the calculated measurement. It's better to have excess tubing (you can cut it) than too little. Avoid sharp bends (minimum radius 5cm) that restrict flow.
⚠️ Before ordering: how to measure
Calculate the length you need:
- Measure the direct distance between the tank and the incubator
- Add 30-40cm for any curves and safety margin
- If the tank is higher, add theheight of the difference in altitude
- Always round to excess to the next half meter
Practical example: Horizontal distance 80cm + vertical difference 40cm + margin 30cm = 150cm → Order 1.5 or 2 meters
📸 In doubt? Send us a photo on WhatsApp of the intended position for the tank and incubator: we recommend the right footage.
🔧 Installation
How to assemble the tube:
- Cut the tube to the desired length with scissors or a utility knife (clean, perpendicular cut)
- Insert one end into the plastic bushing (BOCC.148662) mounted on the incubator hole
- Pass the tube through the bushing to the internal tray/channel
- Connect the tube to the floating (97G) present in the tray
- Insert the other end of the tube into the tank cap hole (0083)
- Make sure all connections are secure.
- Fill the tank and check the correct water flow
- Inspect all joints: there must be no leaks.
Lossless assembly:
- The tube must enter with light pressure (correct seal sign)
- If it enters too easily → wrong diameter or worn tube
- If it doesn't fit → warm the end slightly with hot water (NOT flame)
🧼 Pipe maintenance
Periodic checks (every 3-6 months):
- Check that there are no losses at the junction points
- Check that the tube is not crushed or bent excessively
- Observe the clear tube: the water should flow freely without any trapped air bubbles.
- Check for absence of internal limestone deposits (if visible → replacement)
Cleaning (if necessary):
- Disconnect the hose from both ends
- Run hot water to remove any deposits
- For stubborn deposits: water and vinegar solution (50/50), leave to soak for 1 hour
- Rinse thoroughly
- Make sure water flows freely before reassembling
❌ Common mistakes to avoid
- Don't use garden hoses: They are too rigid and release substances into the water
- Don't use pipes that are too narrow: They limit the flow of water
- Do not crush the tube: Avoid passing it under furniture or heavy objects
- Don't make too sharp turns: Minimum radius 5cm to avoid blocking the flow
- Don't use too long a tube: Above 5 meters the gravity flow becomes insufficient
- Do not expose to direct sunlight: UV rays degrade plastic over time
🛒 Commercial information
Price: €1.89 by the meter (VAT excluded, shipping excluded)
Sale: Per linear meter (specify the desired length when ordering)
FIEM WAREHOUSE COMO ORIGINAL SPARE PART
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders there is a minimum amount of €20 (VAT excluded, shipping excluded).
This threshold serves to cover the operating costs that make the service possible:
- Search and collection time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Order the complete semi-automatic kit to easily get to €20.

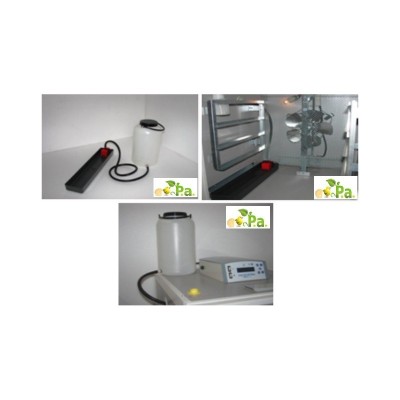

💡 Complete Semi-Automatic Humidity Kit – Order Everything Together
Complete kit for new installation:
- 5L canister (0083) – €8.82
- Red Float (97G) – €5.04
- Tube 10mm × 1.5mt (TUB.) – €2.84
- Plastic bushing (BOCC.148662) – €0.84
- Kit total: €17.54
Replacement tube only (various lengths):
- 1 meter – €1.89
- 1.5 meters – €2.84
- 2 meters – €3.78
- 3 meters – €5.67
Other useful spare parts:
- 350 TOP trays (CIP 28) – €1.30 × 2
- Channel (CIP 40) – €6.50
- Thermometer °F (05/A) – €22.05
📦 Logistics and times
- Shipping: 1 working day
- Delivery: 2-4 business days
- Departure: FIEM Como Warehouse
- Packaging: Protected rolled tube to prevent permanent kinks
✅ Guarantee
- Warranty: 24 months private, 12 months VAT number
- Assistance: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: How much pipe do I need for a standard installation?
A: 1-1.5 meters is sufficient if the tank is close to the incubator (within 1 meter).
Q: Can I use a pipe bought at the hardware store?
A: Not recommended. FIEM tubing has a specific diameter (10mm) and is food-grade. Generic tubing often doesn't fit well or hardens quickly.
Q: Does the hose need to be replaced periodically?
A: If properly maintained, it can last 3-5 years. Replace if you notice hardening, cracks, or leaks.
Q: Can I cut the tube to size?
A: Yes, use sharp scissors or a utility knife. Make a clean, perpendicular cut to ensure a perfect seal.
Q: Does the tube also work for female breeders?
A: Yes, it is the same pipe used for the automatic drinking system of FIEM breeders.
Q: Can I join two pieces of pipe?
A: Possible with a fitting (not included), but not recommended because it creates weak points. It's best to order the correct length.
📞 Need help?
🛒 Order now or ask for information
📞 WhatsApp 351 881 9586
📧 Email: info@padovanavicoltura.it
Please specify your desired length when ordering!
