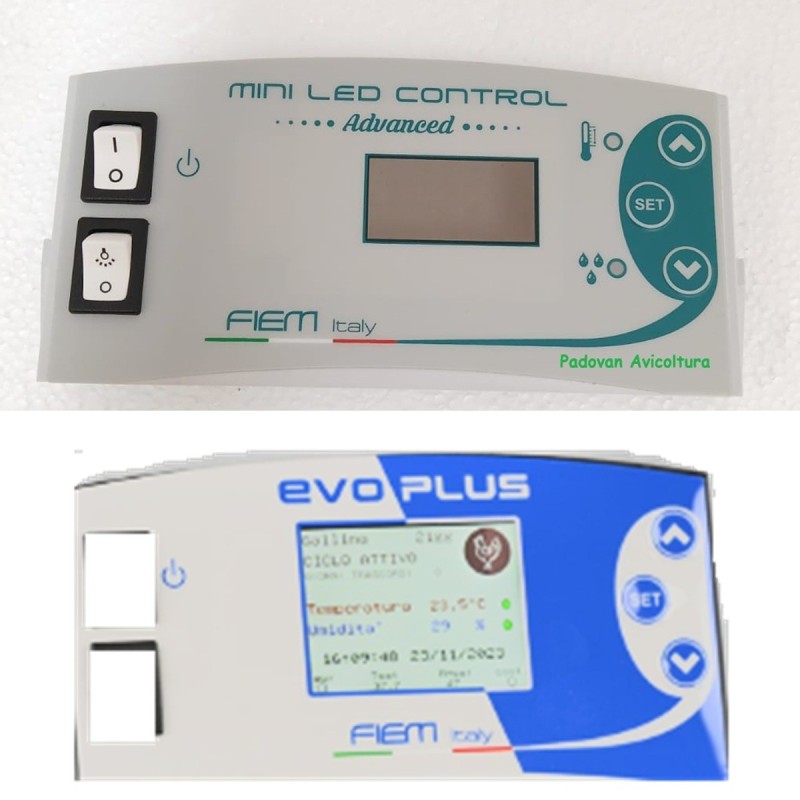

Front Panel for Miniled, Miniled Advanced, Evo Plus + Graphic Membrane

⚙️ How does the MiniLED graphic membrane front panel work?

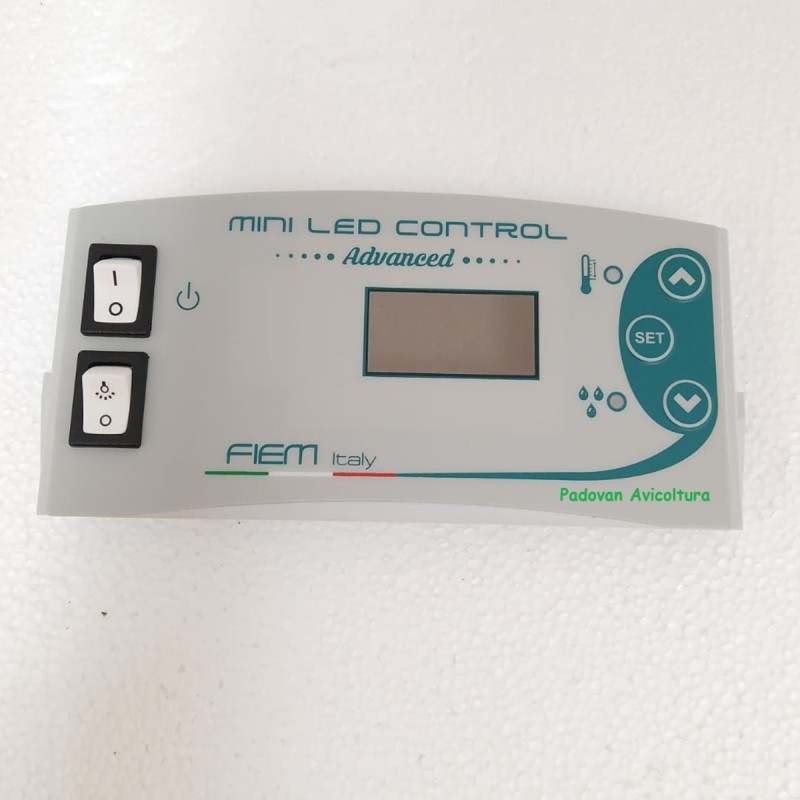

The plastic front panel is the physical interface between the user and the MiniLED, advanced Evo Plus electronic control unit. Its main function is twofold: on the one hand it protects the internal circuits from dust, humidity and accidental impacts, on the other it houses the graphic membrane with conductive contacts that translates finger pressure into electrical signals that can be interpreted by the microprocessor.

The membrane is composed of two thin polyester layers separated by an insulating layer. When you press a button, the two layers come into contact, completing a specific circuit that the control unit recognizes as a command. This system is much more reliable than traditional mechanical buttons because it has no moving parts subject to wear, but after countless presses, the material loses elasticity and the contacts become less precise. This is why, during incubation, a command may not be registered on the first touch, forcing you to press it repeatedly or with greater force.

🔍 When to replace this part

This component should be replaced if you notice one or more of these symptoms:

• ✓ Buttons that don't respond to the first touch: You have to press multiple times or with excessive force to register the command
• ✓ Deep scratches or dulling of the plastic: The writing and symbols become illegible, forcing you to go by memory
• ✓ Broken or loose side hooks: the front panel wobbles or comes off easily from the control unit body
• ✓ Membrane that remains pressed: the display continuously shows an active command even without touching the keys
• ✓ Yellowed or deformed plastic: prolonged exposure to heat or UV rays or aggressive products has compromised the structural integrity.

⚠️ Why it happens and what you risk

Faceplate wear is mainly caused by three factors: repeated mechanical stress (countless pressures during incubation cycles), exposure to high humidity that penetrates between the membrane layers, and accumulation of organic residues (dust, feather dust) that compromise the conductive contacts.

If you continue to use a worn-out control panel, you risk unknowingly setting the temperature or humidity incorrectly: you might press to increase the temperature by 0.5°C, but the command isn't registered, or it's registered twice, taking the parameters out of optimal range. During the critical hatching phase, this can mean the difference between an 85% and 50% success rate. Furthermore, continually forcing the buttons accelerates the internal deterioration of the control unit, with the risk of having to replace the entire electronic component at a much higher cost.

✅ Compatibility verified

This spare part is compatible with all FIEM models listed below. If you're unsure about your specific model, check the code on the internal plate or send us a photo on WhatsApp.

🔧 Assembly in 4 simple steps

⏱ Estimated time: 8-12 minutes | 🔧 Tools needed: small Phillips screwdriver, soft cloth, isopropyl alcohol

1. Turn off and unplug the incubator from the power supply
   Wait at least 5 minutes to allow the internal capacitors to discharge. Place the incubator on a stable, well-lit surface.
2. Remove the damaged faceplate
   Locate the screws securing the control unit's top panel (usually 2 or 4 Phillips screws). Gently unscrew and lift the cover. The front panel is held in place by side clips: gently pry it up with your fingers or a flat, non-metallic object to release it without forcing it. Gently detach the graphic membrane from the comb connector on the circuit board by pulling straight up without bending it.
3. Clean and install the new faceplate
   Using a cloth soaked in isopropyl alcohol, clean the surface of the control unit where the new front panel will be installed, removing any dust or grease. Take the new graphic membrane and insert it into the comb connector on the board, applying even pressure until it clicks into place. Position the plastic front panel, aligning the holes and side clips, then press gently until it snaps into place.
4. Final test
   Replace the top cover and retighten the screws. Connect the power supply and turn on the incubator. Test all the membrane buttons, verifying that the display responds correctly to each press. Check that the front panel is secure and free of play or wobble.

🛡️ How to make it last longer

With minimal maintenance you can significantly extend the life of your MiniLED front panel:

• ✓ Every 6 months: Clean the surface with a soft, slightly damp cloth (never use aggressive products or solvents) to remove organic residues that may infiltrate between the membrane and the plastic.
• ✓ Every year: check that the side hooks are secure and that there are no micro-fractures on the plastic due to accidental impacts
• ✓ During use: Press the keys with the right amount of pressure (you don't need to press hard) and use clean fingers to avoid grease build-up that degrades the conductive contacts.
• ✓ ⚠️ DO NOT do: Never clean with denatured alcohol, acetone or abrasive detergents that dull the plastic; do not expose the control unit to direct sunlight which yellows and hardens the material
