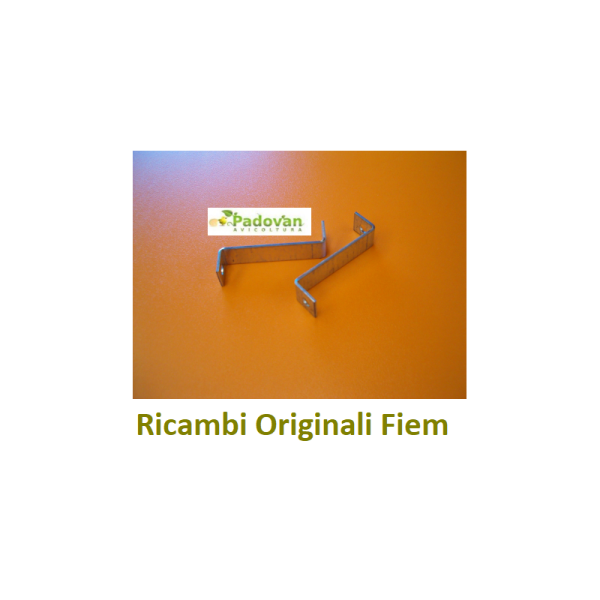

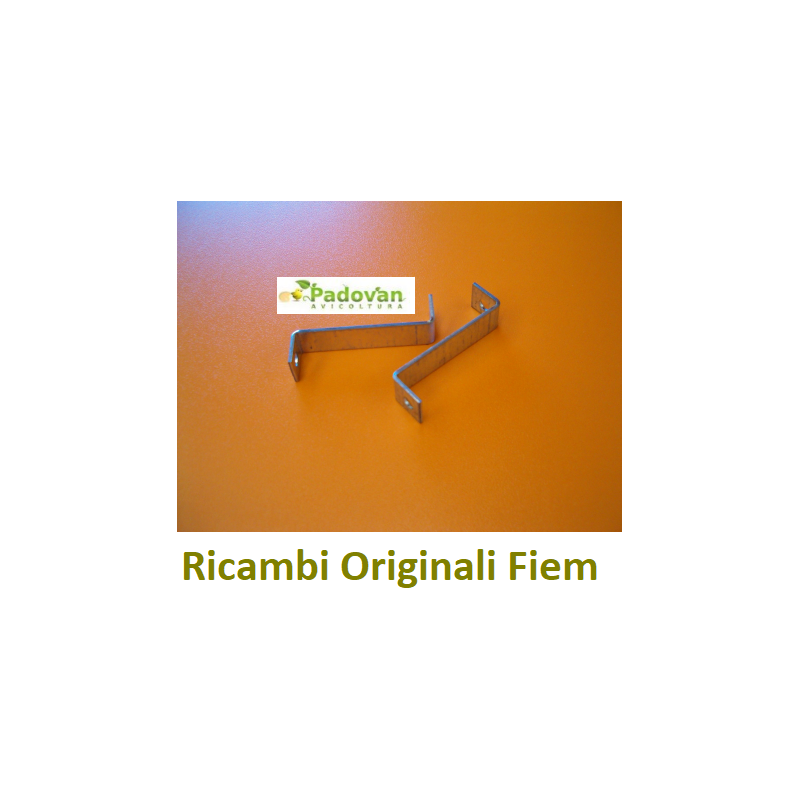

CIP 28 and 40 Metal Fan Motor Supports – Complete Technical Data Sheet
📦 Compatibility
Compatible model: CIP CIP 40
Spare part code: SUPP.VENT.CIP

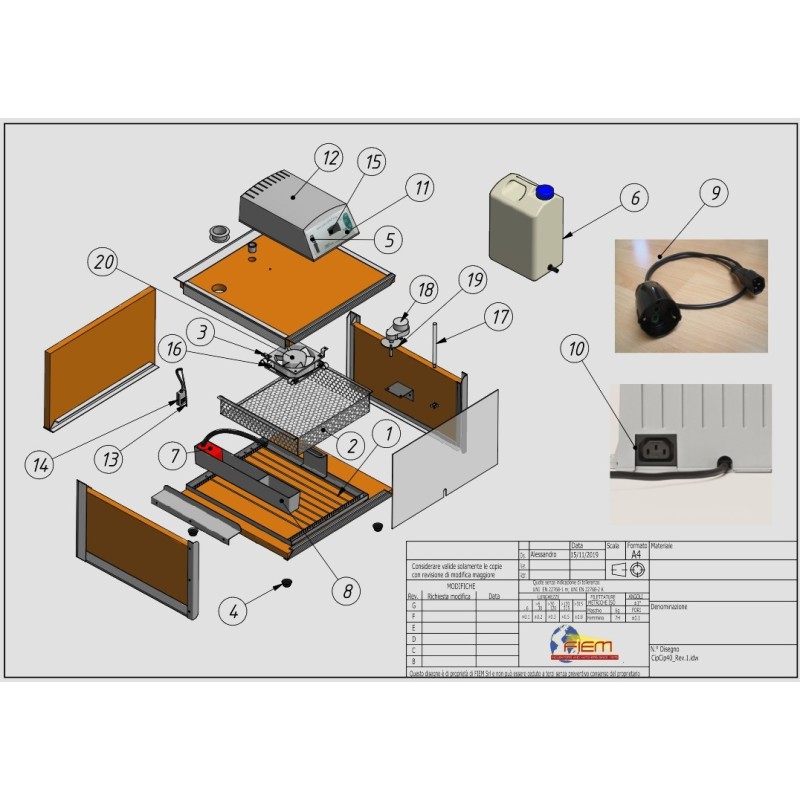

Exploded Technical Reference: Component Number 3
Manufacturer: FIEM Srl (Como, Italy)
🔍 When are these supports needed – Typical symptoms
The metal fan motor brackets should be replaced when one or more of the following symptoms occur:
- Abnormal vibrations: The fan vibrates more markedly than normal operation
- Excessive noise: Metallic, rattling, or grinding noises coming from the fan compartment
- Misaligned fan: The fan is not perfectly centered or is touching the guard mesh
- Preventive maintenance: When replacing the fan motor itself, it is good practice to also check and, if necessary, replace the supports.
- Oxidation or breakage: The media appears visibly damaged, oxidized or deformed
⚠️ Before ordering: quick checks to do
Do you really need the brackets? Before purchasing, check these things:
- Always unplug the appliance from the power outlet (safety first)
- Visually check if metal brackets are damaged, oxidized, loose or missing
- Check that the fan is not simply dirty (dust, feathers, debris) – a thorough cleaning may solve the problem
- Check that the protective mesh is not deformed and does not touch the fan
- Check that the fan motor itself is still securely attached
📸 Not sure? Send us a photo on WhatsApp (incubator open, fan visible, any symptoms described): we'll help you determine if the supports really need replacing or if there's another cause.
🔧 Safe installation
ATTENTION SAFETY
Before any intervention:
- Always unplug the appliance from the power outlet
- Never intervene with the incubator switched on or connected to the mains.
- No part must be under tension during work
- If you feel unsafe or unfamiliar with the job → contact a qualified electrician or technician
Assembly procedure:
- Unplug the power cord from the electrical outlet
- Access the fan compartment
- If necessary, remove the fan motor to access the brackets
- Remove the old metal brackets from their locations
- Place the new supports in their appropriate locations, making sure they are well seated
- Reassemble the fan, making sure it is perfectly centered.
- Reconnect the plug and turn on the incubator
- Check for abnormal vibrations and noises upon restart
💡 Advice from 45 years of experience: When replacing the bearings, take the opportunity to thoroughly clean the fan and the protective mesh. Accumulated dust and debris can cause vibrations even with new bearings.
❌ Common mistakes to avoid
- Never force the supports into their seats: they must fit naturally
- Do not overtighten the fan screws: they may deform the supports
- Don't reuse visibly damaged brackets "just to save money" – you risk further damage to the fan motor
- Don't forget to check the safety net too: if it's deformed, it can cause noises similar to those of worn supports.
🛒 Commercial information
Unit price: €1.05 (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and collection time – Each component must be located in the FIEM warehouse among thousands of references, visually checked for integrity and carefully extracted
- Administrative management – Invoice issuance, tax registration, inventory control, management system updates
- Tracked courier organization – Pickup booking, tracking label generation, customer notification, and delivery problem management
💡 Tip: Consider adding other useful spare parts to complete your order and reach €20.
💡 Related spare parts to evaluate together
If you are replacing your fan mounts, consider also ordering:
- 37/A Fan Motor (€38.64) – The complete fan, if it also shows signs of wear or noise
- CIP 40 Fan Guard Net (€10.50) – Protects the fan from debris and ensures safety
- 2A fuse (€0.42) – Always check that it is intact, especially after an electrical fault
- Resistance Collar (€1.58) – Another useful little component to have in stock
📦 Logistics and delivery times
- Shipping: 1 business day from order confirmation
- Delivery: 2-4 working days (tracked courier)
- Goods Departure: FIEM Warehouse in Como
- Tracking: You will receive the tracking number via email/WhatsApp
✅ Warranty and technical assistance
- Legal guarantee: 24 months for purchases from private individuals, 12 months for purchases with VAT numbers
- Original FIEM spare parts: Quality guaranteed by the manufacturer
- Technical assistance: Available via WhatsApp 392 452 5099 for questions about installation or diagnosis
- FIEM since 1975: Over 45 years of experience in the artificial incubation sector
