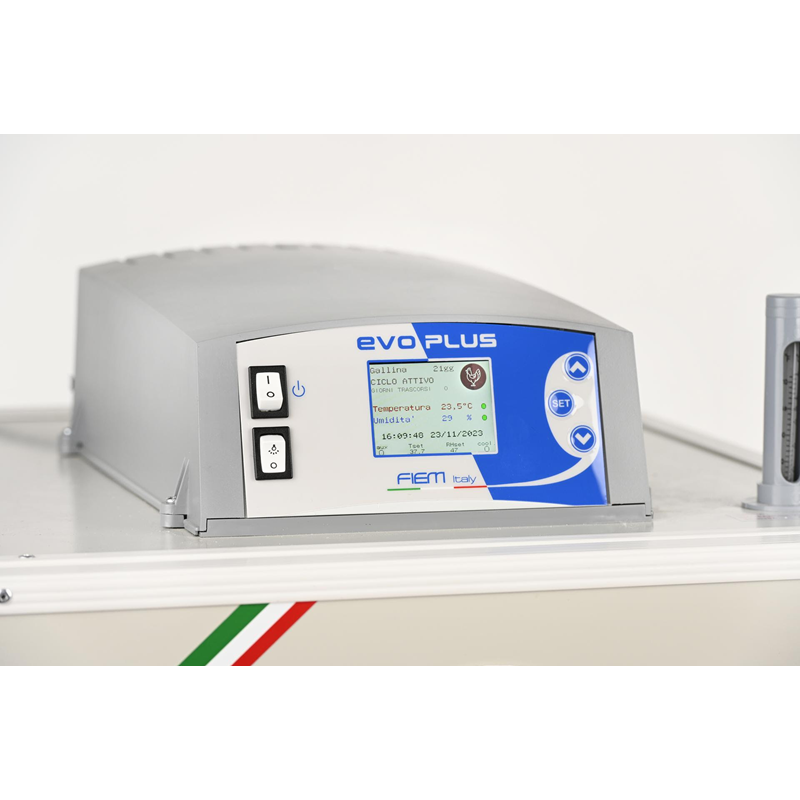

FIEM EVO PLUS Control Unit – Complete Technical Data Sheet
✅ EVO PLUS Control Unit – Advanced control for FIEM incubators
The EVO PLUS It is the most complete and modern digital control unit in the FIEM range. Designed for those who want to monitor every phase of incubation, it offers a color graphic interface, numerous advanced functions, and the option of WiFi/App expansion for remote management.
📦 Compatibility
Compatible models:
- CIP CIP – Complete series
- MG50 – 50 chicken eggs
- MG70 – 70 chicken eggs
- MG100 – 100 chicken eggs
- MG140 – 140 chicken eggs
- MG200 – 200 chicken eggs
- MG244 – 244 chicken eggs
- MG316 – 316 chicken eggs
- API Series – Beekeeping incubators
- REPTILES Series – Reptile incubators with cooling
- OSTRICHES Series – Professional ostrich incubators
- HATCHING Series – Dedicated hatching cabinets
- Germinsatoi Series -
Spare part code: EVO PLUS
English name: EVO PLUS CONTROL UNIT
Producer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any doubts or don't find the part you want, please send us an email. WhatsApp:
- ✅ A photo of the current control unit
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
This way we can help you more quickly. Thank you!
✔ Ideal for:
- Professional breeders
- Systems with multiple temperature management
- Special applications such as differentiated hatching, germination
- Complex multi-species incubations

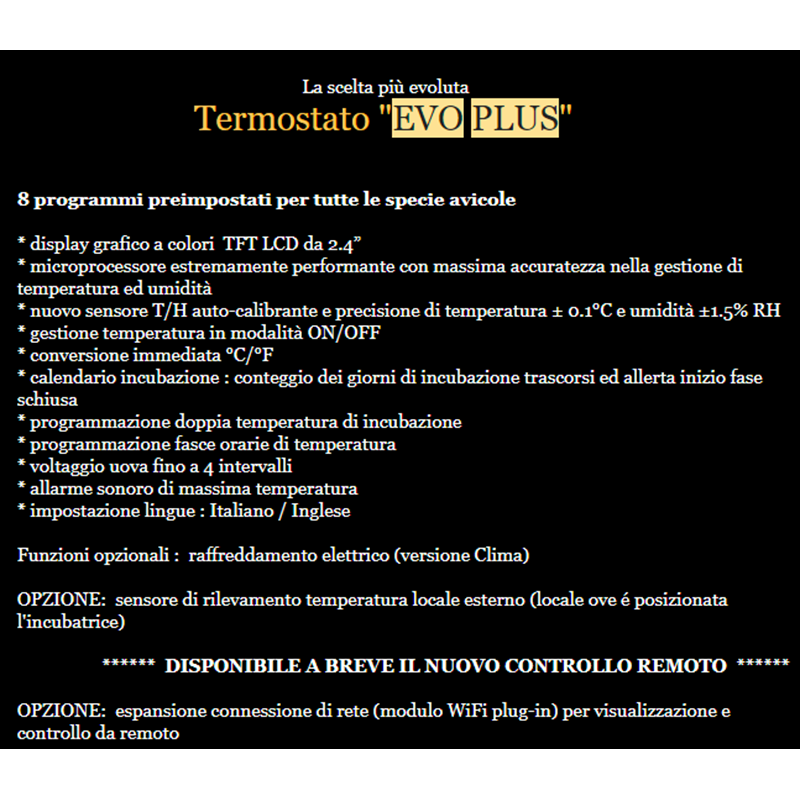

⚙ Main technical features
- 2.4" color TFT LCD display (240×320): Clear and multilingual graphic menu (Italian/English)
- Advanced microprocessor: High precision even in complex environments
- Professional self-calibrating T/H sensor: Accuracy ±0.1°C and ±1.5% RH
- 8 preset programs: Hen, Duck, Goose, Quail, Pheasant, Partridge, Turkey, Guinea Fowl
- CUSTOM Program: Fully user-modifiable parameters
- Special programs: Dedicated Germination and Hatching
- Advanced temperature management: Dual temperature + time slots (up to 4 intervals)
- Incubation calendar: Day countdown and hatching start alert
- °C/°F Conversion: Immediate
- Sound alarm: For overtemperature (±1°C compared to set)
- Plug-in WiFi module (optional): Remote control via smartphone (available from 2025)
- ⚠ Upgrade: Requires complete rewiring of the incubator

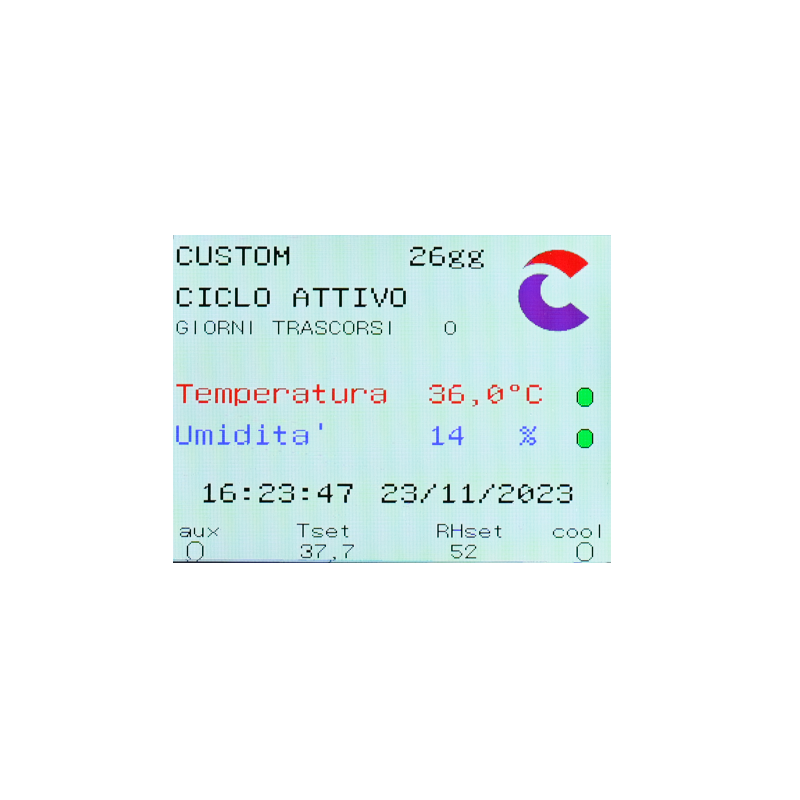

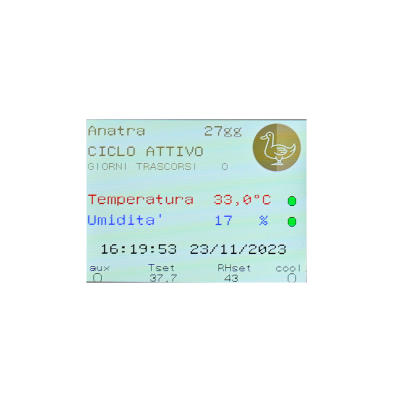

📊 Display view
The color TFT display shows simultaneously:
- Internal temperature with decimal reading (°C/°F)
- Set temperature setting
- Indoor relative humidity (%RH)
- Set humidity set
- Selected species (with animal icon)
- Incubation cycle duration in days
- Incubation days elapsed
- Date and time
- Activation indicators: heating (green), humidifier (green), AUX, cooling
🎯 Preset incubation programs
The EVO PLUS includes 8 optimized programs for the main poultry species with parameters already configured:
| Species |
Duration (days) |
Temp. °C |
Humidity % |
| Hen |
21 |
37.7 |
55 |
| Duck |
28 |
37.5 |
60 |
| Goose |
30 |
37.5 |
60 |
| Quail |
16-18 |
37.7 |
50 |
| Pheasant |
23-25 |
37.5 |
55 |
| Partridge |
23-24 |
37.5 |
55 |
| Turkey |
28 |
37.5 |
60 |
| Guinea fowl |
26-28 |
37.5 |
55 |
CUSTOM Program: To completely customize temperature, humidity, and cycle duration.
🔧 Advanced features
Dual temperature + time slots
The EVO PLUS can handle two different temperatures throughout the day with up to 4 programmable time slots:
- "Normal" temperature during the day
- "ON band" temperature during the night or specific periods
- Ideal for simulating natural day/night cycles
Germinator Program
Simultaneous management of:
- Temperature with time slots
- Controlled humidity
- Germination/Growing Lights (TRIAC AUX)
HATCHING Program
Dedicated to the last 2 days of incubation with:
- Reduced temperature for hatching
- High humidity (65-75%)
- Special icon to indicate the start of hatching
CLIMATE function (cooling)
For reptile incubators or germinators with thermo-electric module:
- Temperature management below room temperature
- Cooling relay ("cool" indicator)
⚙️ Technical menu
Access: Press ↑ + ↓ + SET simultaneously for 3 seconds
Configurable functions:
- Temperature sensor calibration: Adjustment up to ±3°C
- Humidity sensor calibration: Adjustment up to ±5%
- Language selection: Italian / English
- Temperature scale: °C / °F
- Date and time: Full calendar
- Time slot programming: Up to 4 intervals
🔔 Alarms and security
- Overtemperature alarm: Buzzer active if temperature exceeds ±1°C from the set point (within 10 seconds)
- Sensor failure: Display shows "FAIL" if T or H sensor disconnected
- Automatic timeout: Exit menu after 15 seconds of inactivity
🔌 Output Features
| Exit |
Type |
Maximum power |
| Heating |
TRIAC |
1000W |
| Humidification |
TRIAC |
800W |
| AUX (lights/voltage) |
TRIAC |
1000W |
| Cooling (COOL) |
Relay |
400Vac / 16A |
🔧 Installation
⚠️ IMPORTANT: Installation requires certified electrical skills. It operates at 230V.
Upgrade from previous control units:
- Requires complete rewiring of the incubator
- Check connector and sensor compatibility
- FIEM technical assistance or specialized electrician recommended
🟢 Comparison: MiniLED Advanced vs EVO PLUS
| Characteristic |
MiniLED Advanced |
EVO PLUS |
| Display |
3-digit green LED |
2.4" color TFT LCD |
| Interface |
LED base |
Multilingual graphics |
| Programs |
None (ON/OFF) |
8 presets + Custom |
| Double temperature |
No |
Yes + 4 time slots |
| Incubation calendar |
No |
Yes with day counting |
| Hatching program |
No |
Yes dedicated |
| Germination program |
No |
Yes with lights |
| Optional WiFi |
Yes (plug-in) |
Yes (plug-in, from 2025) |
| Ideal for |
Hobbyists, basic use |
Professionals, advanced use |
| Price |
€176.00 |
On request |
🟢 When to choose the MINILED ADVANCED
- ✅ If you are looking for simplicity, reliability and basic automatic control
- ✅ If you use the incubator regularly, without the need to program time slots
- ✅ If you want an economical but precise system
🔵 When to upgrade to EVO PLUS
- ✅ If you want maximum control over temperature and humidity at every stage
- ✅ If you are looking for complete customization with multiple programs and phase management
- ✅ If you manage hatching and germination separately
- ✅ If you want to control the incubator remotely (with WiFi module)
- ✅ If you work with professional multi-species hatcheries
💬 What customers say
Positive reviews:
- Very clear and readable color display
- Intuitive programming with graphical menu
- Excellent accuracy with self-calibrating sensors
- Versatility to handle different species
- Double temperature useful for complex cycles
⚠️ Critical issues reported:
- Upgrading from old control units requires complete rewiring (technical procedure)
- Higher price than MiniLED Advanced (justified by the features)
🛒 Commercial information
Price: ON REQUEST (VAT excluded, shipping excluded)
Includes: Complete control unit with professional T/H sensor
FIEM WAREHOUSE COMO – Padovan Avicoltura distributes exclusively original, certified FIEM spare parts.
📞 For a personalized quote: WhatsApp 351 881 9586
💡 Related spare parts and accessories
- T/H EVO PLUS/ML Probe (price to be verified) – Replacement sensor
- EVO PLUS front panel + keyboard membrane (price to be verified) – Aesthetic replacement
- Plug-in WiFi module (available from 2025) – Remote control
- Additional temperature sensor (optional) – For external temperature display
📦 Logistics and times
- Shipping: 1 working day
- Delivery: 2-4 business days
- Departure: FIEM Como Warehouse
- Packaging: Protected for electronic components
✅ Guarantee
- Warranty: 24 months private, 12 months VAT number
- Assistance: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: What is the main difference between EVO PLUS and MiniLED Advanced?
A: EVO PLUS has a color display with a graphic menu, 8 preset programs, dual temperature with time slots, an incubation calendar, and special programs (hatching/germination). MiniLED Advanced is simpler, with just the basic ON/OFF switch.
Q: Does it include WiFi module?
A: No, WiFi is optional (plug-in module available from 2025, sold separately).
Q: Can I upgrade from my MiniLED?
A: Yes, but it requires a complete rewiring of the incubator. We recommend qualified technical assistance.
Q: Are the preset programs editable?
A: The standard programs have fixed optimized values. For customizations, use the CUSTOM program.
Q: Does the EVO PLUS handle cooling?
A: Yes, it has COOL output for thermo-electric module (reptile incubators/germinators).
💡 Conclusion
🔧 The MiniLED Advanced It is perfect for simple and intuitive everyday use.
🚀 The EVO PLUS It is recommended for those who want automation, total control and advanced features.
👉 The EVO PLUS is the upgrade that truly transforms the professional incubation experience.
