FIEM MiniLED Advanced Complete Control Unit – Technical Data Sheet
✅ MINILED ADVANCED control unit – Essential and reliable digital control (standard version)
The MINILED ADVANCED is the standard digital control unit installed on many FIEM incubators. It is designed to ensure precise automatic temperature and humidity control, thanks to an intuitive LED system and self-calibrating sensors. It represents an evolution of the previous Mini LED model, improving efficiency, precision, and ease of use.
📦 Compatibility
Compatible models:
- CIP CIP 28 – 28 chicken eggs
- CIP CIP 40 – 40 chicken eggs
- MG50 – 50 chicken eggs
- MG70 – 70 chicken eggs
- MG100 – 100 chicken eggs
- API Series – Beekeeping Incubators
Spare part code: MINILED ADVANCED (NEW)
English Name: NEW MINILED ADVANCED CONTROL UNIT
Full Italian name: MINI LED ADVANCED CONTROL UNIT COMPLETE WITH 230V T/H PROBE
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the current control unit
- ✅ A photo of the incubator
- ✅ A photo of the label on the back of the incubator
This way we can help you more quickly. Thank you!
✔ Ideal for:
- Professional and hobby poultry incubators
⚙ Main technical features

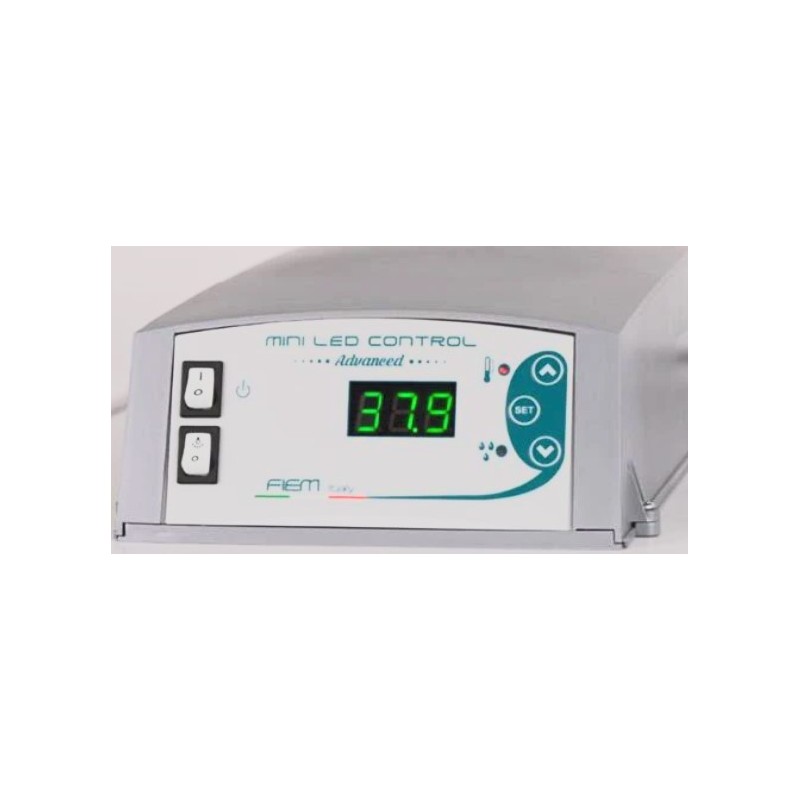

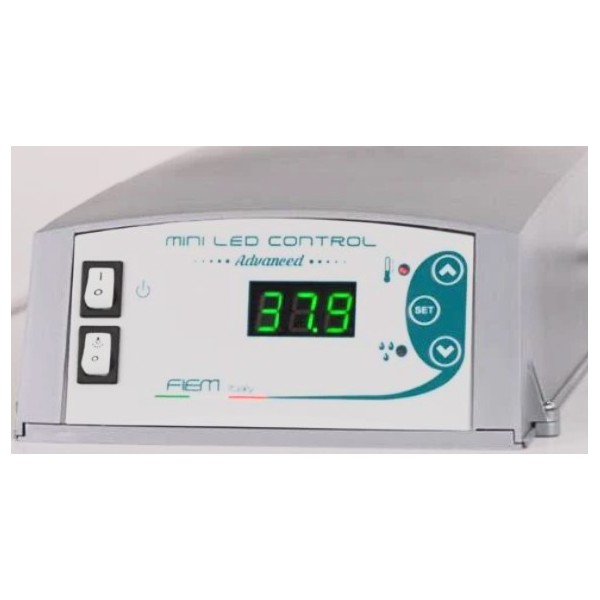

- 3-digit LED display (green): Optimal visibility even in low light conditions
- High precision microprocessor: Ensures reliable automatic adjustment
- Self-calibrating temperature/humidity sensor: Accuracy ±0.1°C and ±1.5% RH
- ON/OFF control: For temperature (with red LED) and humidity (with blue LED)
- °C/°F Conversion: Useful for international use
- Integrated alarms: For overtemperature and sensor failure
- Intuitive interface: Simple to use even for inexperienced operators
- Power supply: 230V AC
⭐ Main advantages
- FIEM Reliability: Italian Technology Since 1975
- High compatibility: With numerous FIEM incubator models
- Improved Upgrade: Compared to the previous Mini LED
- Available with plug-in WiFi module (optional in the future on new models): For remote control
🔧 Full technical specifications
| Characteristic | Value |
|---|
| Display | 3-digit 7-segment LED, green color |
| Microprocessor | High performance with total safety |
| T/H sensor | Latest generation professional (included) |
| Temperature accuracy | ±0.1°C |
| Humidity accuracy | ±1.5% RH |
| Self-calibration | Temperature and humidity sensors |
| Management | ON/OFF mode for T and H |
| Scale Conversion | °C / °F |
| LED heating | Red |
| LED humidifier | Blue |
| Alarms | Overtemperature and sensor failure |
| Diet | 230V AC |
| WiFi option | Plug-in module (optional) |
✅ When to choose the MINILED ADVANCED
- If you are looking for simplicity, reliability and ease of use
- If you want consistent results with semi-professional incubators
- If you don't need advanced features or complex programming
- If you are a hobbyist, small breeder or beekeeper
- If you want to improve hatching rates without technical complications
🔵 When to upgrade to EVO PLUS
- If you want maximum control and customization of the parameters
- If you manage multiple species or complex incubation cycles
- If you want remote monitoring with WiFi/App
- If you are looking for professional automatic management
- If you need time slots or hatching schedules
💬 What customers say
Users praise the MiniLED Advanced's intuitive operation, precise climate control, and solid build quality.
Positive reviews:
- "I use it on an MG50: accurate, quiet and reliable"
- Highly readable green LED display
- Very easy to program even for beginners
- Highly accurate self-calibrating sensor
- Effective alarms for faults or overtemperatures
⚠️ Critical issues reported:
- Being a basic model, it lacks advanced functions such as time slots or hatching programs
- Installation requires care in positioning the sensor correctly
- To upgrade from old control units, complete rewiring is required
🔧 Installation
⚠️ IMPORTANT: Installation requires electrical expertise. If you are not familiar with 230V systems, please consult a qualified technician.
Upgrade from old control unit:
- Requires complete rewiring of the incubator
- Check compatibility with your specific model
- Position the T/H sensor correctly (away from the heating element and trays)
- Follow the FIEM instructions provided carefully
🛒 Commercial information
Price: €176.00 (VAT excluded, shipping excluded)

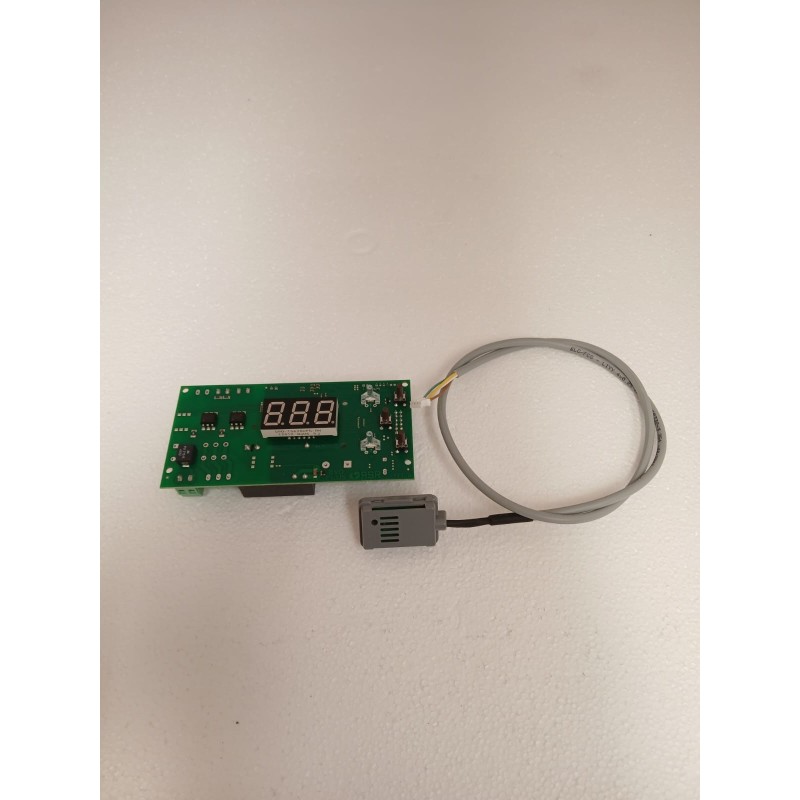

Includes: Complete control unit + 230V T/H probe
FIEM WAREHOUSE IN COMO – From Padovan Avicoltura, authentic FIEM spare parts for guaranteed long-lasting efficiency.
💡 Related spare parts and accessories
- Plug-in WiFi module (price to be confirmed) – For remote control
- MiniLED plastic front panel + graphic membrane (price to be confirmed) – Aesthetic replacement
- R75E resistor (€12.18) – Heating cable
- Analog Thermometer °F (0.5/A) (€22.05) – Backup Control
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
- Packaging: Protected for electronic components
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Is the MiniLED Advanced suitable for my incubator?
A: It's compatible with CIP 28/40, MG50/70/100, and API Series. Check your specific model and send photos on WhatsApp if you have any questions.
Q: Does it already include the temperature/humidity sensor?
A: Yes, it comes complete with a T/H probe. You don't need to purchase anything separately.
Q: Can I install it myself without being an electrician?
A: Not recommended. It works with 230V and requires complete rewiring. It's best to rely on a qualified technician.
Q: What is the difference between MiniLED Advanced and EVO PLUS?
A: MiniLED Advanced is simpler (basic ON/OFF), EVO PLUS has advanced programming, time slots, and integrated WiFi. Choose based on your needs.
Q: Is the WiFi module included?
A: No, WiFi is optional (plug-in module sold separately).
Q: Can I replace my old LCD control unit?
A: Yes, but it requires a complete rewiring of the incubator. We recommend technical assistance.
🛒 Conclusion
The MiniLED Advanced is developed by FIEM, an Italian brand that has been a leader in the incubation sector since 1975. Choose the MINILED ADVANCED for reliable, precise, and immediate management without complications. Upgrade to the EVO PLUS for a complete technological upgrade with advanced programming and WiFi.
👉 Perfect for those looking for a simple yet precise digital control unit, for effective and worry-free incubation.
