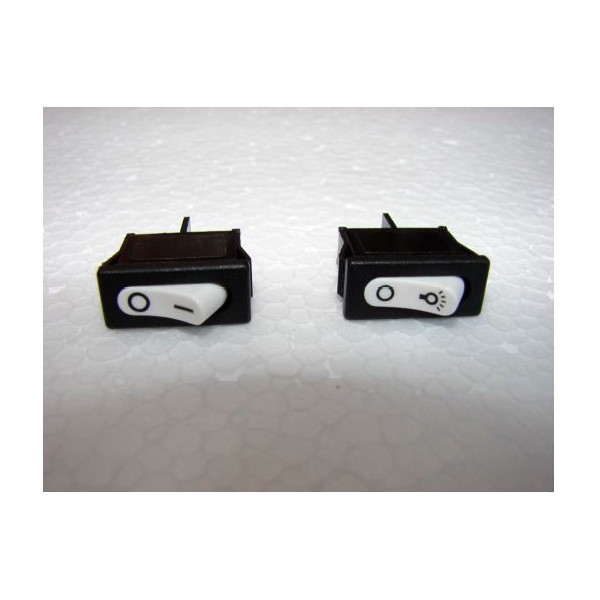

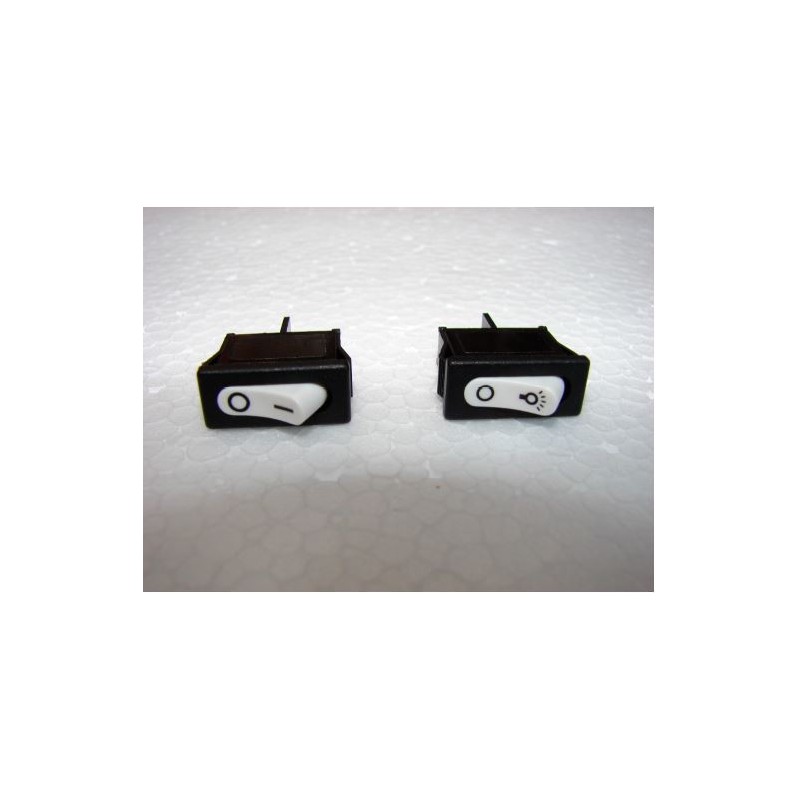

RL 34 Single-Pole Switch for FIEM Control Units – Technical Data Sheet
📦 Compatibility
Compatible models: FIEM digital control units
Applications: MiniLED, MiniLED Advanced and other models with manual on/off control
Spare part code: RL 34
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator and the control unit
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this switch
The switch should be replaced when:
- Switch stuck: Does not move or remains in an intermediate position
- Intermittent contact: You have to press it several times before the control unit turns on
- No contact anymore: The control unit does not turn on even though the switch is in the ON position
- It produces sparks: When you press it, you see flashes or hear popping sounds.
- Visibly damaged: Broken, burned, or showing signs of overheating
- Loose Lever: It moves idly without commanding anything
⚠️ Before ordering: quick checks
Is the switch really the problem?
- Unplug the power cord from the electrical outlet (safety first)
- Check the fuse: Check that the fuse is intact (if it is blown, replace it first)
- Check the power supply: Verify that power is reaching the outlet (try with another device)
- Visual inspection of the switch: Are there signs of burning, melted plastic, or obvious damage?
- Mechanical Test: Does the switch move freely or is it stiff/stuck?
📸 Not sure? Send us a photo of the switch on WhatsApp and describe the symptoms: we'll help you diagnose it.
🔧 Technical characteristics (indicative)
| Characteristic | Typical value |
|---|
| Type | Single-pole switch (on/off) |
| Rated voltage | 250V AC |
| Rated current | 2-6A (to be verified) |
| Assembly | On the panel |
| Contact type | SPST (Single Pole Single Throw) |
Note: Exact technical specifications to be verified based on the specific control unit model.
🔧 Installation – FOR QUALIFIED TECHNICIANS ONLY
ATTENTION SAFETY
Electrical work – Requires specific skills
- ALWAYS unplug the appliance before any intervention
- Only work with the device completely turned off and unplugged
- If you are not a qualified electrician → rely on a technician
- The control unit operates at 230V: an error can be dangerous
Replacement procedure (for expert technicians only):
- Unplug the power cord from the electrical outlet
- Open the control unit by removing the panel screws
- PHOTOGRAPH the connections before disconnecting any cables
- Note the position of each wire (live, neutral, earth if applicable)
- Disconnect the wires from the switch (faston or terminal screws)
- Remove the old switch from its housing (usually clip or nut type)
- Mount the new RL 34 switch in the same position
- Reconnect the cables exactly as shown in the diagram.
- Check that there are no loose or touching wires.
- Reassemble the control unit panel
- Reconnect the plug and test the operation
💡 Advice from 45 years of experience: Before reassembling everything, test with the panel open (extra caution!) to make sure the switch is working properly. Only then should you close it completely.
❌ Common mistakes to avoid
- Do not reverse the connections: Phase and neutral must go to the correct points
- Don't forget the link photo: Without it you're in trouble.
- Do not force the switch into place: It should fit easily.
- Don't leave loose cables: They risk short circuits.
- Don't improvise if you're not experienced: Call a technician
🛒 Commercial information
Price: [INFORMATION TO BE VERIFIED] (VAT excluded, shipping excluded)
FIEM COMO WAREHOUSE ORIGINAL SPARE PARTS
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Add more electrical parts to complete your order.
💡 Related spare parts to order together
- 2A Fuse (CF521220) (€0.42) – Always have in stock
- R75E resistor (€12.18) – The heating cable
- MiniLED Advanced Control Unit (€176.00) – If the control unit also shows malfunctions
- Thermometer °F (05/A) (€22.05) – Analogue temperature control
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Can I replace it myself without being an electrician?
A: Not recommended. It works with 230V and requires knowledge of electrical connections. It's best to rely on a qualified technician.
Q: Is the switch suitable for all FIEM control unit models?
A: Always check the specific part number for your control unit. Send a photo on WhatsApp to confirm compatibility.
Q: If the switch doesn't work, could it just be dirty?
A: Rarely. When electrical switches fail, they need to be replaced. Cleaning them doesn't fix internal contact problems.
Q: How long does a switch last?
A: With normal use, it can last for many years. Frequent on/off cycles will wear it out faster.
📞 Need help?
🛒 Order now or ask for information
📞 WhatsApp 351 881 9586
📧 Email: info@padovanavicoltura.it
We'll help you check compatibility and, if necessary, direct you to a local technician.
