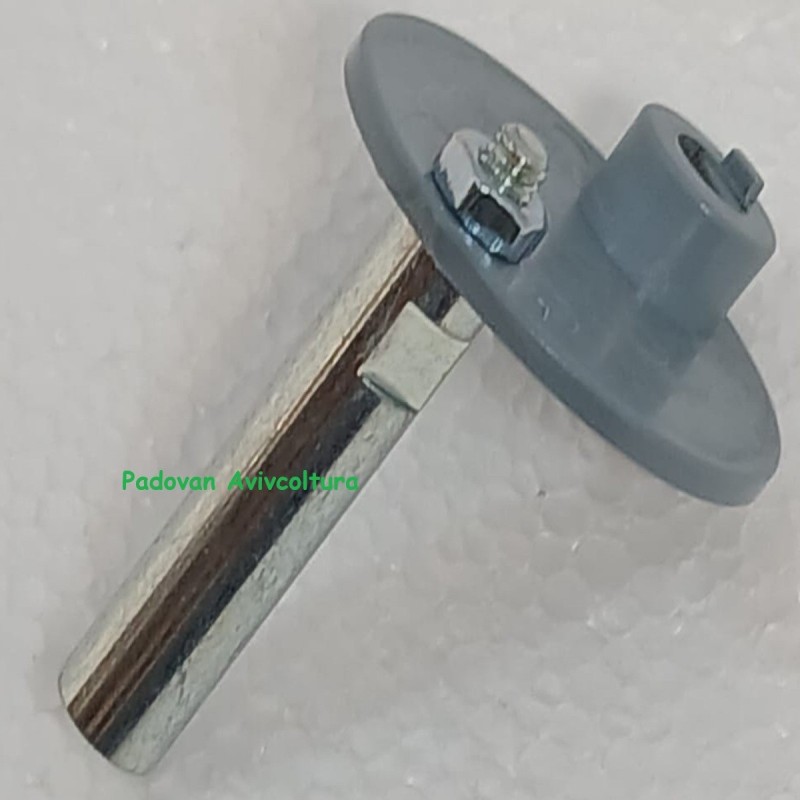

FIEM F117M Gearmotor Cams – Complete Technical Data Sheet
📦 Compatibility
Compatible models:
- SMART Series – All models with automatic turning
- EASY Series – All models with automatic turning
- CIP Series – CIP CIP 28, CIP CIP 40
- INCA Series – All models with automatic turning
- COSMO Series – All models with automatic turning
- MG50 Series -
Spare part code: F117M
English name: PLASTIC JOINT FOR SMART/EASY/CIP/INCA/COSMO/mg50 TURNING MOTOR
Manufacturer: FIEM Srl (Como, Italy)
⚠️ ATTENTION: Please carefully check that the spare part matches the image. If you have any questions or don't find the part you're looking for, please contact us via WhatsApp :
- ✅ A photo of the required spare part
- ✅ A photo of the incubator and the motor
- ✅ A photo of the label on the back of the incubator
- ✅ A description of the fault, preferably with a video
This way we can help you more quickly. Thank you!
🔍 When you need this cam
The F117M cam should be replaced when:
- Motor idles: The motor runs but the grille doesn't move.
- Irregular Turning: The grate moves jerkily or gets stuck
- Incomplete rotation: The grill does not complete the rotation and stops halfway
- Cam visibly broken: Cracks, splits
- Worn teeth: The cam is damaged and no longer engages properly
- Excessive noise: Creaking, squeaking, or strange noises when turning
- Cam warped: The plastic has warped due to heat or wear
⚠️ What is the cam and why is it essential?
The cam (or joint) is the mechanical connection between the motor and the grid:
- Transmits movement: Converts the rotation of the motor into oscillation of the grid
- Critical Component: No working cam, zero automatic rollover
- Subject to mechanical stress: Continuously works under load during incubation
- Plastic material: Quieter than metal but wears out over time
⚠️ Before ordering: diagnostics
Is the cam really the problem?
Rapid test:
- Unplug the incubator
- Open the incubator and locate the turning motor
- Inspect the cam visually: Are there cracks, breaks, or missing teeth?
- Manually move the grid: Does it move freely or is there resistance?
If the motor does NOT turn at all: The problem is not the cam but probably the motor itself or the control unit.
📸 Not sure? Send us photos/videos of the starter motor and cam on WhatsApp : we'll help you diagnose.
🔧 Technical features
| Characteristic | Value |
|---|
| Material | Durable technical plastic |
| Type | Motor-grill transmission joint |
| Function | Rotary motion transmission |
| Compatibility | FIEM SMART/EASY/CIP/INCA/COSMO series motors |
| Thermal resistance | -10°C - 60°C |
🔧 Replacement
Procedure (accessible even to non-expert users):
- Unplug the incubator from the socket
- Open the incubator and remove the egg turning grid
- Locate the turn motor (usually on the back or underneath)
- Unclip the old cam from the motor (it may be a snap-on or clip-on type)
- Remove the cam from the grill mount
- Mount the new F117M cam on the starter motor
- Connect the other end to the grid
- Check that it engages correctly without forcing
- Reassemble the grid in the incubator
- Plug it back in and test the vacuum turning (without eggs)
💡 Advice from 45 years of experience: After installing the new cam, run the motor for at least 3-4 complete cycles without any load to ensure everything runs smoothly and without any strange noises. Only then should you load the eggs.
❌ Common mistakes to avoid
- Do not force the assembly: The cam should fit easily
- Do not reverse the connections: There is a correct direction for the motor-cam-grill
- Don't forget to test: Always dry test before loading eggs
- Do not use damaged cam: Even a small crack can cause sudden failure
🛒 Commercial information
Price: €1.20 each (VAT excluded, shipping excluded)
FIEM WAREHOUSE IN COMO – Padovan Avicoltura distributes exclusively original, certified FIEM spare parts.
💬 Minimum Order: Transparency on Logistics Costs
For spare parts orders, a minimum amount of €20 (excluding VAT and shipping) is required.
This threshold serves to cover the operating costs that make the service possible:
- Search and picking time – Each component must be located in the FIEM warehouse among thousands of references
- Administrative management – Invoice issuance, tax registration, inventory control
- Tracked courier organization – Pickup booking, tracking label, customer notification
💡 Tip: Order at least 17 cams (€20.40) as a reserve for future replacements, or supplement with other useful spares.
💡 Related spare parts
- Reversing motor (price to be verified) – Even if the motor is faulty
- 2A Fuse (CF521220) (€0.42) – Electric motor protection
- Thermometer °F (05/A) (€22.05) – Analogue temperature control
- Egg turner inserts (€1.26) – If the inserts are also worn
📦 Logistics and times
- Shipping: 1 business day
- Delivery: 2-4 working days
- Departure: FIEM Como Warehouse
✅ Guarantee
- Warranty: 24 months for private customers, 12 months for VAT numbers
- Support: WhatsApp 351 881 9586
- FIEM since 1975: Original tested components
❓ Frequently Asked Questions (FAQ)
Q: Does the F117M cam fit all FIEM models?
A: It's suitable for SMART, EASY, CIP, INCA, and COSMO MG50 models with automatic turning. Always check your specific model.
Q: How long does a plastic cam last?
A: With normal use, 5-10 years. It depends on annual incubation cycles and maintenance.
Q: Can I replace it myself without being a technician?
A: Yes, it's a simple mechanical replacement. Just follow the procedure indicated and you don't need to be an electrician.
Q: If the cam is broken, can I still use the incubator?
A: Yes, but you must turn the eggs by hand 3-5 times a day. This is a delicate and risky operation for the eggs.
